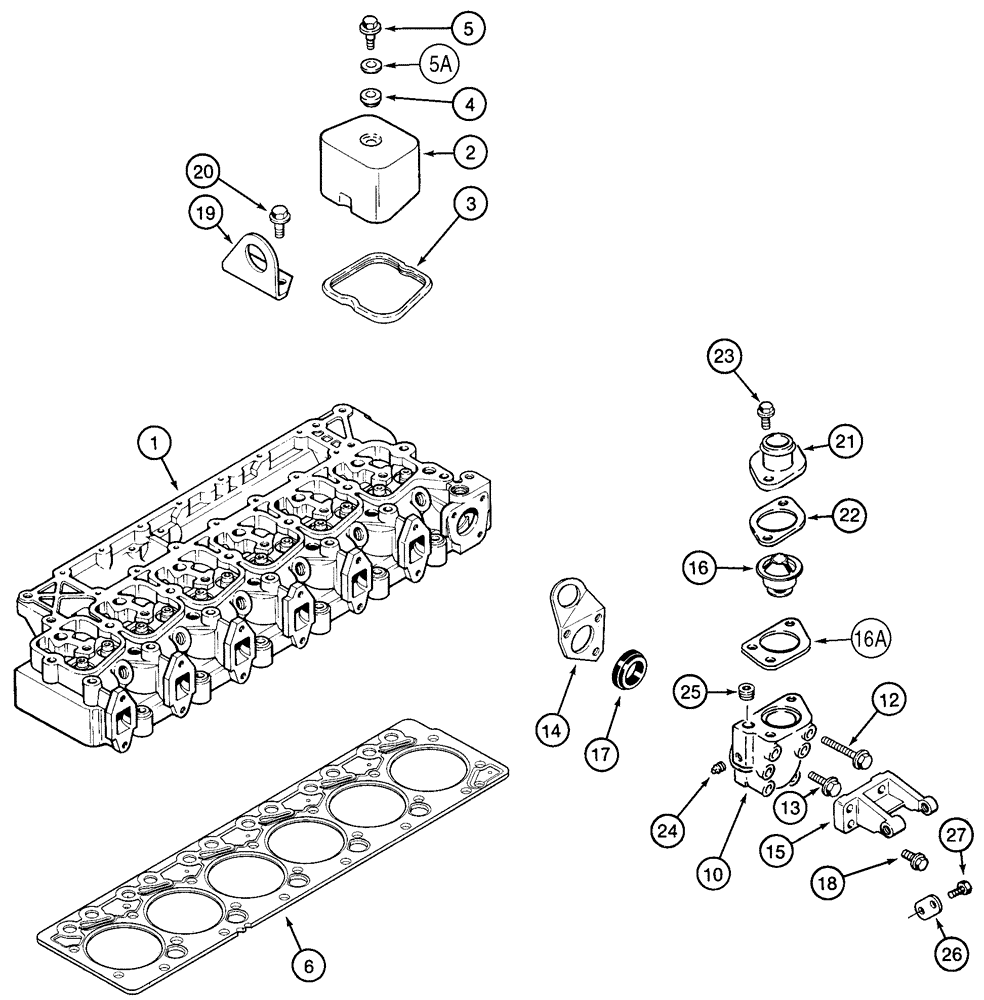

Запчасти Case 621C (02-016) - CYLINDER HEAD COVER (NORTH AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD, See figure 2-43

1шт.

2

J928404

COVER

6шт.

3

J930906

GASKET

6шт.

4

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

5

J907049

BOLT,Hex

M8 x 21

6шт.

5a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

6шт.

6

J283335

GASKET,2.32mm Thk

1шт.

6

J283337

GASKET,2.24mm Thk

0.25 mm

1шт.

6

J283339

GASKET

0.50 mm

1шт.

10

J924473

HOUSING

Thermostat

1шт.

12

J919995

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

flange, M8 x 90, Thermostat and Housing

2шт.

13

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

Thermostat and Housing

1шт.

14

J903757

BRACKET

Thermostat and Housing

1шт.

15

J910923

BRACE

SUPPORT, Thermostat and Housing

1шт.

A77920

SPARE PART SET

KIT thermostat, Consists of: Refs. 16, 17, no longer available, Order: P/N A77736, Thermostat and Housing

1шт.

A77736

THERMOSTAT

KIT thermostat, Consists of: Refs. 16, 16A, and 17, Replaces: P/N A77920, Thermostat and Housing

1шт.

16

NSS

NOT SOLD SEPARAT

THERMOSTAT and housing

1шт.

16a

J920336

PLATE

TEMPLATE, Thermostat and Housing

1шт.

17

J923331

GASKET

Thermostat and Housing

1шт.

18

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and Housing

3шт.

19

J908118

BRACKET

Thermostat and Housing

1шт.

20

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

Thermostat and Housing

2шт.

21

J920123

CONNECTION

outlet, Thermostat and Housing

1шт.

22

J912558

GASKET,0.8mm Thk

mounting, Thermostat and Housing

1шт.

23

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Thermostat and Housing

2шт.

24

J900956

PLUG

18 mm O.D., Thermostat and Housing

1шт.

25

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

Thermostat and Housing

1шт.

26

J910924

PLATE

BRACE, Thermostat and Housing

1шт.

27

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Thermostat and Housing

1шт.
