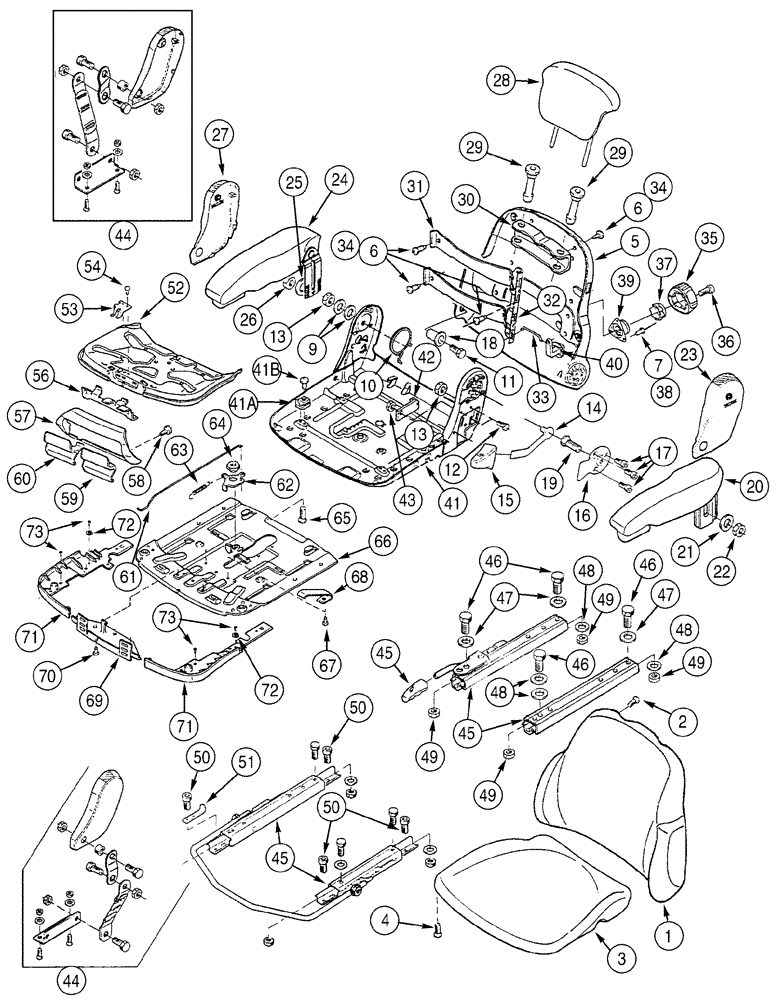

Запчасти Case 621C (09-036) - SEAT ASSY, AIR SUSPENSION, UPPER SEAT ASSY (09) - CHASSIS

328476A1

SEAT

ASSY., cloth, air suspension, Consists of: 347213A1, P/N 345130A1, 1 - 73, See figure 9-159

1шт.

345130A1

SEAT

SUSPENSION ASSY., not illustrated, See figure 9-159

1шт.

347213A1

SEAT

ASSY., cloth, upper seat assembly, Consists of: Refs.1 - 73

1шт.

345724A1

CUSHION

backrest, cloth, Includes Refs. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION backrest

1шт.

2

345726A1

SCREW

4шт.

345725A1

CUSHION

cloth, Includes: Refs. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

cushion, Seat

1шт.

4

345726A1

SCREW

4шт.

345764A1

BACKREST

cover plate, Includes: Refs. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER

1шт.

6

345731A1

SCREW

7шт.

7

345771A1

RIVET

3шт.

345778A1

REPAIR KIT

HARDWARE backrest adjustment, Includes: Refs. 9 - 19

1шт.

9

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

2шт.

10

345743A1

SPRING

1шт.

11

345748A1

SCREW

M8 x 40

1шт.

12

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

2шт.

13

60-4845T1

NUT

2шт.

14

345749A1

LEVER

1шт.

15

345752A1

HANDLE

GRIP

1шт.

16

345753A1

PLATE

1шт.

17

345754A1

SCREW

M6 x 10

3шт.

18

345774A1

BUSHING

1шт.

19

345776A1

SCREW

M8 x 18

1шт.

20

345744A1

ARMREST

left hand, Includes: Refs. 21, 22

1шт.

21

345729A1

WASHER

1шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

23

345741A1

COVER

left hand

1шт.

24

345755A1

ARMREST

right hand, Includes: Refs. 25, 26

1шт.

25

345729A1

WASHER

1шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

27

345756A1

COVER

right hand

1шт.

28

345727A1

SEAT HEADREST

Cushion, Cloth

1шт.

29

345765A1

FERRULE

2шт.

30

345766A1

RETAINER

1шт.

345767A1

SUPPORT

KIT lumbar, Includes: Refs. 31 - 40

1шт.

31

345732A1

PLATE

2шт.

32

345733A1

PLATE

1шт.

33

345730A1

ROD

1шт.

34

345731A1

SCREW

7шт.

35

345769A1

HANDLE

KNOB, Includes: Ref. 36

1шт.

36

345768A1

SCREW

M6 x 10

1шт.

37

345770A1

PAWL

1шт.

38

345771A1

RIVET

3шт.

39

345772A1

SUPPORT

BRACKET

1шт.

40

345773A1

LEVER

1шт.

41

345747A1

FRAME

Includes: Refs. 41A, 41B

1шт.

41a

345737A1

GUIDE

4шт.

41b

345777A1

RIVET

4шт.

42

345786A1

STOP

1шт.

43

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

44

345785A1

KIT

Tether

1шт.

45

345783A1

RAIL ASSY.

KIT seat slide rails, See figure 9-161

1шт.

46

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

47

345729A1

WASHER

3шт.

48

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

4шт.

49

345728A1

NUT

M8

4шт.

50

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

6шт.

51

345784A1

BRACKET

1шт.

345757A1

PLATE

seat angle adjustment, Includes: Refs. 52-55

1шт.

52

NSS

NOT SOLD SEPARAT

PLATE

1шт.

53

345758A1

SPRING

Includes: Ref. 54

1шт.

54

345735A1

RIVET

2шт.

55

345726A1

SCREW

not illustrated

4шт.

56

345759A1

LATCH

1шт.

57

345761A1

COVER

Includes: Ref. 58

1шт.

58

345726A1

SCREW

2шт.

59

345763A1

HANDLE

1шт.

60

345762A1

HANDLE

Includes: Ref. 61

1шт.

61

345779A1

ROD

1шт.

345775A1

LEVER

ASSY., Includes: Refs. 62 - 65

1шт.

62

NSS

NOT SOLD SEPARAT

LEVER

1шт.

63

345780A1

SPRING

tension

1шт.

64

345781A1

BUSHING

1шт.

65

345782A1

SCREW

M8 x 12

1шт.

345734A1

PLATE

ASSY., Includes: Refs. 66 - 70

1шт.

66

NSS

NOT SOLD SEPARAT

PLATE

1шт.

67

345735A1

RIVET

2шт.

68

345736A1

SPRING

2шт.

69

345739A1

BRACKET

Includes: Ref. 70

1шт.

70

345740A1

SCREW

4шт.

345738A1

COVER

Includes: Refs. 71 - 73

1шт.

71

NSS

NOT SOLD SEPARAT

COVER

1шт.

72

345103A1

WASHER

2шт.

73

345735A1

RIVET

4шт.
