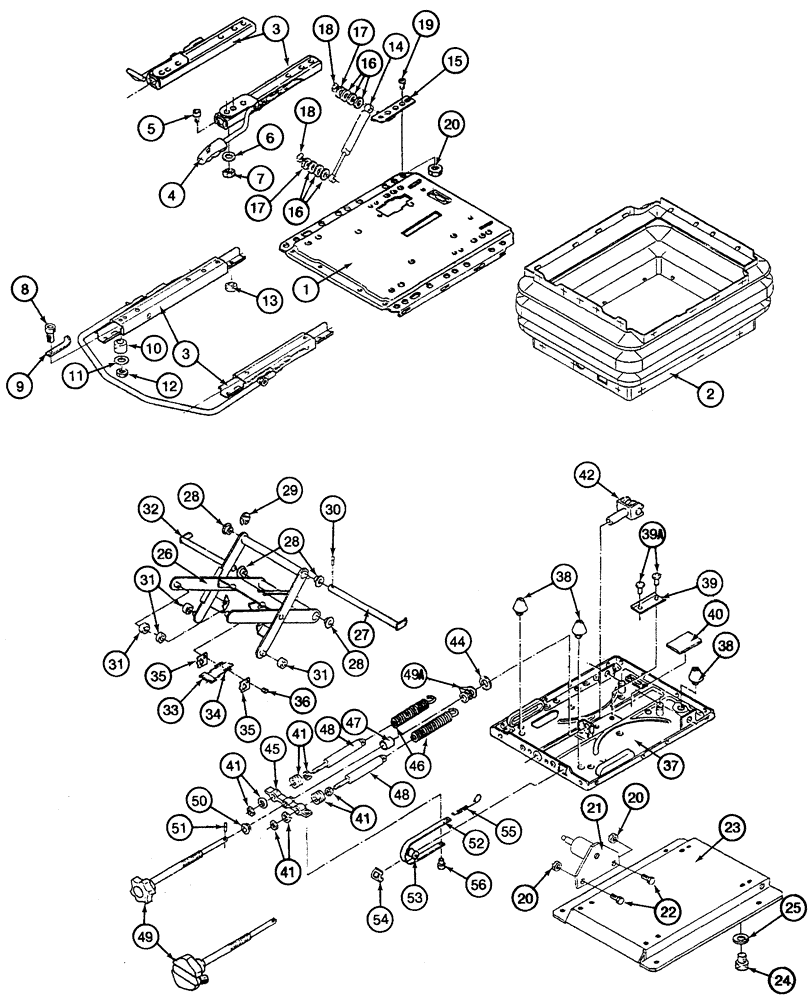

Запчасти Case 621C (09-035) - SEAT ASSY, MECHANICAL SUSPENSION, SUSPENSION ASSY (09) - CHASSIS

328474A1

SEAT ASSY.

vinyl, mechanical suspension, Consists of: P/N 346300A1, P/N 346085A1, Refs. 1 - 56

1шт.

328475A1

SEAT

ASSY., cloth, mechanical suspension, Consists of: P/N 347041A1, P/N 346085A1, Refs. 1 - 56

1шт.

346300A1

SEAT

ASSY., vinyl, upper assembly, not illustrated, See figure 9-135

1шт.

347041A1

SEAT

ASSY., cloth, upper assembly, not iIllustrated, See figure 9-135

1шт.

346085A1

SEAT

SUSPENSION ASSY., Consists of: Refs. 1 - 56

1шт.

1

346086A1

PLATE

upper

1шт.

2

346087A1

BOOT

1шт.

345783A1

RAIL ASSY.

seat slide rails, Includes: Refs. 3 - 7, for mounting, See figure 9-139

1шт.

3

NSS

NOT SOLD SEPARAT

RAIL

2шт.

4

NSS

NOT SOLD SEPARAT

GRIP

1шт.

5

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

4шт.

6

345729A1

WASHER

BOLT socket

4шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

8

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

6шт.

9

346103A1

SUPPORT

BRACKET

1шт.

10

346089A1

BUSHING

SUPPORT

5шт.

11

345729A1

WASHER

6шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

13

130726A1

SPACER

BEARING support

1шт.

346097A1

SHOCK ABSORBER

Includes: Refs. 14 - 22

1шт.

14

NSS

NOT SOLD SEPARAT

ABSORBER shock

1шт.

15

346108A1

BRACKET

1шт.

16

3402570R1

WASHER

SPACER

6шт.

17

346109A1

WASHER

2шт.

18

346110A1

NUT

lock, M6

2шт.

19

346098A1

SCREW

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

21

346099A1

SUPPORT

1шт.

22

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

2шт.

23

346100A1

BASE

1шт.

24

346107A1

SCREW

4шт.

25

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

4шт.

346105A1

ARM

Includes: Refs. 26 - 36

1шт.

26

NSS

NOT SOLD SEPARAT

ARM

1шт.

27

346095A1

BOLT

SHAFT

1шт.

28

60-5623T1

FLANGED BEARING

BUSHING

4шт.

29

800-4910

CIRCLIP,M10

RING

1шт.

30

1281964C1

PIN, ROLL

dowel

1шт.

31

3225310R1

ROLLER

4шт.

32

346096A1

BOLT

SHAFT

1шт.

33

3225306R1

RETAINER

PLATE

1шт.

34

130744A1

SPRING

tension

2шт.

35

60-1559T1

PLATE

2шт.

36

60-1606T1

PIN

BOLT

1шт.

346088A1

SEAT

PLATE ASSY., lower, Includes: Refs. 37 - 41

1шт.

37

NSS

NOT SOLD SEPARAT

PLATE

1шт.

38

3223483R1

BUMPER

3шт.

39

K262122

PLATE

ANGLE, Includes: Ref. 39A

1шт.

39a

3225327R1

RIVET

2шт.

40

3225314R1

PLATE

rubber

1шт.

41

346091A1

PLUG

KIT hardware

2шт.

42

1281949C1

YOKE

UNIVERSAL JOINT YOKE

1шт.

44

3225298R1

RUBBER WASHER

1шт.

45

3230238R1

RETAINER

1шт.

46

3230235R1

SPRING

2шт.

47

346089A1

BUSHING

SUPPORT

1шт.

48

346090A1

SHOCK ABSORBER

2шт.

346094A1

KIT

Includes: Refs. 49 - 51

1шт.

49

NSS

NOT SOLD SEPARAT

KNOB

1шт.

49a

3225318R1

BEARING, BALL

WASHER thrust

1шт.

50

K262120

BUSHING

1шт.

51

346093A1

DOWEL

PIN

1шт.

52

346092A1

BAND

STRAP

1шт.

53

3225299R1

ROLLER

1шт.

54

3225282R1

GUIDE

1шт.

55

3225332R1

SPRING

1шт.

56

3225315R1

BUTTON

PLUG retainer

1шт.
