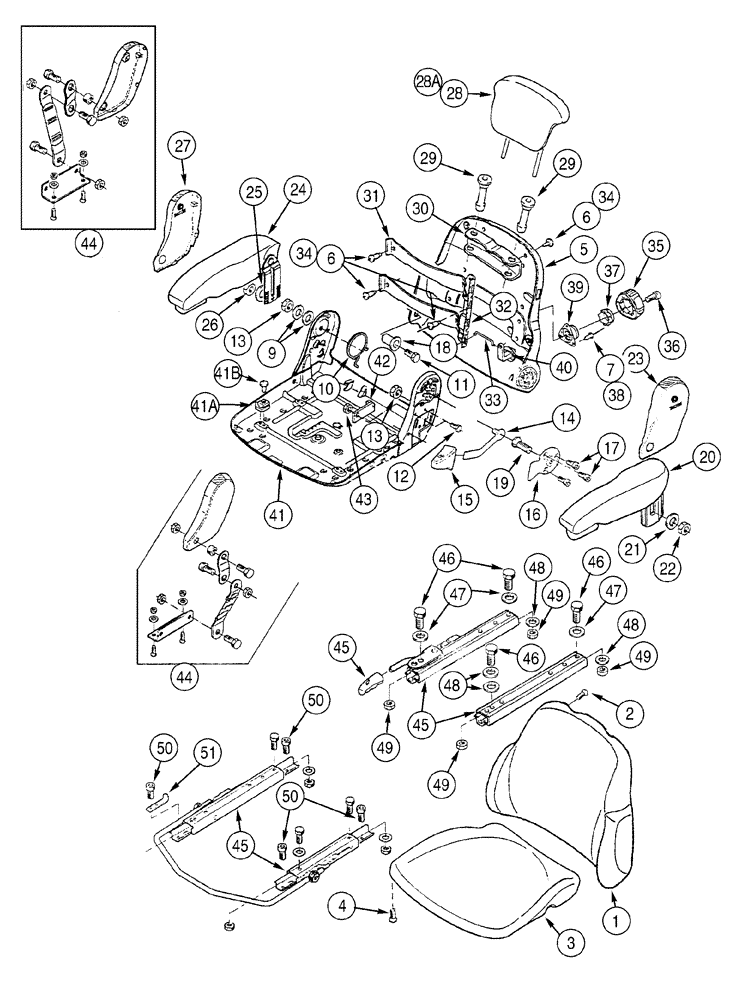

Запчасти Case 621C (09-034) - SEAT ASSY, MECHANICAL SUSPENSION, UPPER SEAT ASSEMBLY (09) - CHASSIS

328474A1

SEAT ASSY.

vinyl, mechanical suspension, Consists of P/N 346300A1, P/N 346085A1, 1 - 51, See figure 9-143

1шт.

328475A1

SEAT

cloth, mechanical suspension, Consists of P/N 347041A1, P/N 346085A1, 1 - 51, See figure 9-143

1шт.

346085A1

SEAT

not illustrated, See figure 9-143

1шт.

346300A1

SEAT

vinyl, upper seat assembly, Consists of: Refs. 1 - 51

1шт.

347041A1

SEAT

cloth, upper seat assembly, Consists of: Refs. 1 - 51

1шт.

346301A1

CUSHION

vinyl, Includes: Refs. 1, 2

1шт.

347042A1

CUSHION

cloth, Includes: Refs. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

cushion, backrest

1шт.

2

345726A1

SCREW

4шт.

346302A1

CUSHION

vinyl, Includes: Refs. 3, 4

1шт.

347043A1

CUSHION

cloth, Includes: Refs. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION seat

1шт.

4

345726A1

SCREW

4шт.

345764A1

BACKREST

cover plate, Includes: Refs. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER

1шт.

6

345731A1

SCREW

7шт.

7

345771A1

RIVET

3шт.

345778A1

REPAIR KIT

HARDWARE backrest adjustment, Includes: Refs. 9 - 19

1шт.

9

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

2шт.

10

345743A1

SPRING

1шт.

11

345748A1

SCREW

M8 x 40

1шт.

12

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

2шт.

13

60-4845T1

NUT

2шт.

14

345749A1

LEVER

1шт.

15

345752A1

HANDLE

1шт.

16

345753A1

PLATE

1шт.

17

345754A1

SCREW

M6 x 10

3шт.

18

345774A1

BUSHING

1шт.

19

345776A1

SCREW

M8 x 18

1шт.

20

345744A1

ARMREST

left hand, Includes: Refs. 21, 22

1шт.

21

345729A1

WASHER

1шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

23

345741A1

COVER

left hand

1шт.

24

345755A1

ARMREST

right hand, Includes: Refs. 25, 26

1шт.

25

345729A1

WASHER

1шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

27

345756A1

COVER

right hand

1шт.

28

346303A1

SEAT HEADREST

vinyl

1шт.

28a

345727A1

SEAT HEADREST

Cloth

1шт.

29

345765A1

FERRULE

2шт.

30

345766A1

RETAINER

1шт.

345767A1

SUPPORT

KIT lumbar, Includes: Refs. 31 - 40

1шт.

31

345732A1

PLATE

2шт.

32

345733A1

PLATE

1шт.

33

345730A1

ROD

1шт.

34

345731A1

SCREW

7шт.

35

345769A1

HANDLE

KNOB, Includes: Ref. 36

1шт.

36

345768A1

SCREW

M6 x 10

1шт.

37

345770A1

PAWL

1шт.

38

345771A1

RIVET

3шт.

39

345772A1

SUPPORT

BRACKET

1шт.

40

345773A1

LEVER

1шт.

41

345747A1

FRAME

Includes: Refs. 41A, 41B

1шт.

41a

345737A1

GUIDE

4шт.

41b

345777A1

RIVET

4шт.

42

345786A1

STOP

1шт.

43

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

44

345785A1

KIT

Tether

1шт.

45

345783A1

RAIL ASSY.

seat slide, See figure 9-145

1шт.

46

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

47

345729A1

WASHER

3шт.

48

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

4шт.

49

345728A1

NUT

M8

4шт.

50

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

6шт.

51

346103A1

SUPPORT

BRACKET

1шт.
