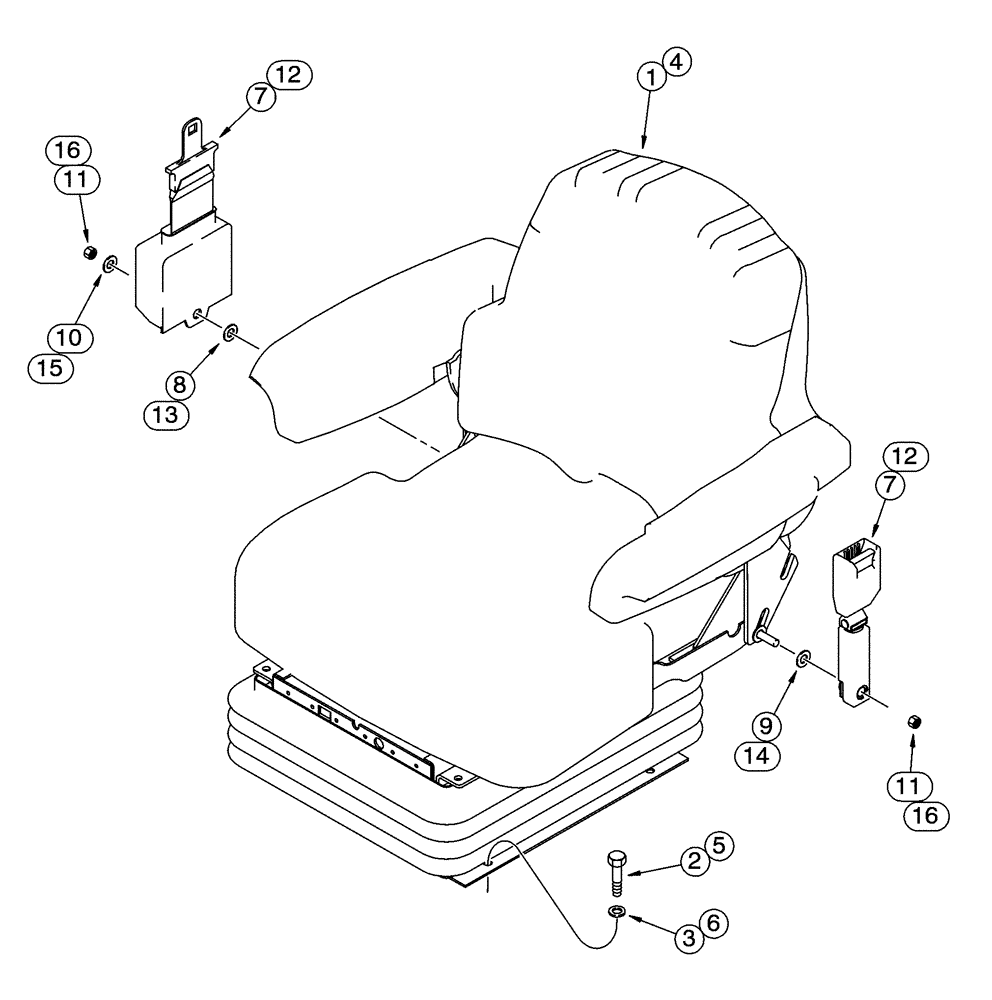

Запчасти Case 621C (09-033) - SEAT - MOUNTING, MECHANICAL SUSPENSION SEAT (09) - CHASSIS

1

328474A1

SEAT ASSY.

vinyl, See figures 9-135 - 9-149

1шт.

1

328475A1

SEAT

cloth, See figures 9-135 - 9-149

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.

4

399259A1

DRIVER SEAT

cloth, See figures 9-151 - 9-167, no longer available, Order: P/N 369847A1, air suspension seat

1шт.

4

399259A1

DRIVER SEAT

cloth, See figures 9-169 - 9-175, Replaces: P/N 328476A1, air suspension seat

1шт.

5

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Air suspension seat

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm, Air suspension seat

4шт.

7

249116A1

SAFETY BELT ,50.80 mm W

If Equipped, Includes Refs. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER, (51 mm), 2 inch wide retractable seat belt

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER, (51 mm), 2 inch wide retractable seat belt

1шт.

10

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), (51 mm), 2 inch wide retractable seat belt

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

(51 mm), 2 inch wide retractable seat belt

2шт.

12

249117A1

SAFETY BELT ,76.20 mm W

If equipped, Includes, Refs. 13, 14, Retractable

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER, (76 mm), 3 inch wide retractable seat belt

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER, (76 mm), 3 inch wide retractable seat belt

1шт.

15

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), (76 mm), 3 inch wide retractable seat Belt

1шт.

16

231-2447

LOCK NUT,7/16"-14, GB

(76 mm), 3 inch wide retractable seat belt

2шт.
