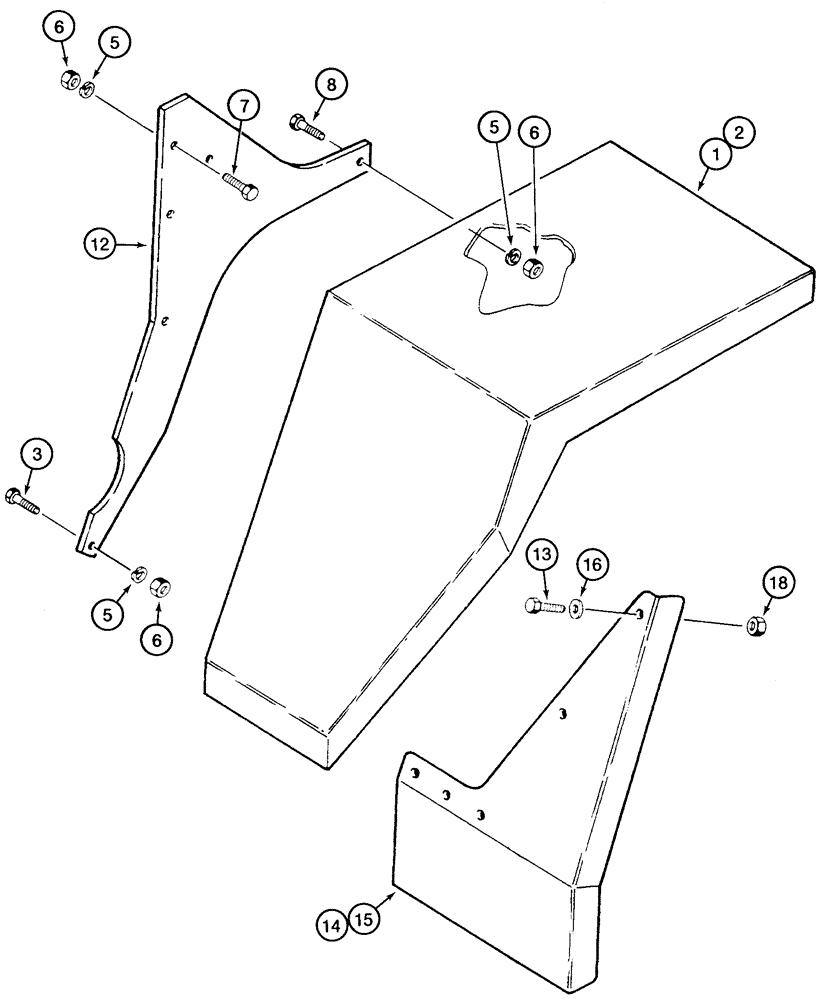

Запчасти Case 621C (09-032) - FRONT FENDERS TUV, EUROPE ONLY, XT LOADER, Z BAR LOADER (09) - CHASSIS

1

339966A1

FENDER

front, right hand

1шт.

2

339962A1

FENDER

front, left hand, not shown

1шт.

3

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

5

892-11012

LOCK WASHER,M12

No Longer Used, Order: P/N 896-11012

18шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Replaces P/N 892-11012

18шт.

6

829-1412

NUT,M12, Cl 10.9

No longer used, Order P/N 832-10412

18шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

Replaces P/N 829-1412

18шт.

7

627-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

M12 x 60; 10.9

4шт.

8

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

12

E137454

SUPPORT

FENDER

2шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

10шт.

14

129003A1

SKIRT

MUD FLAP, right hand

1шт.

15

129002A1

SKIRT

MUD FLAP, left hand, not shown

1шт.

16

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

special

10шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

10шт.
