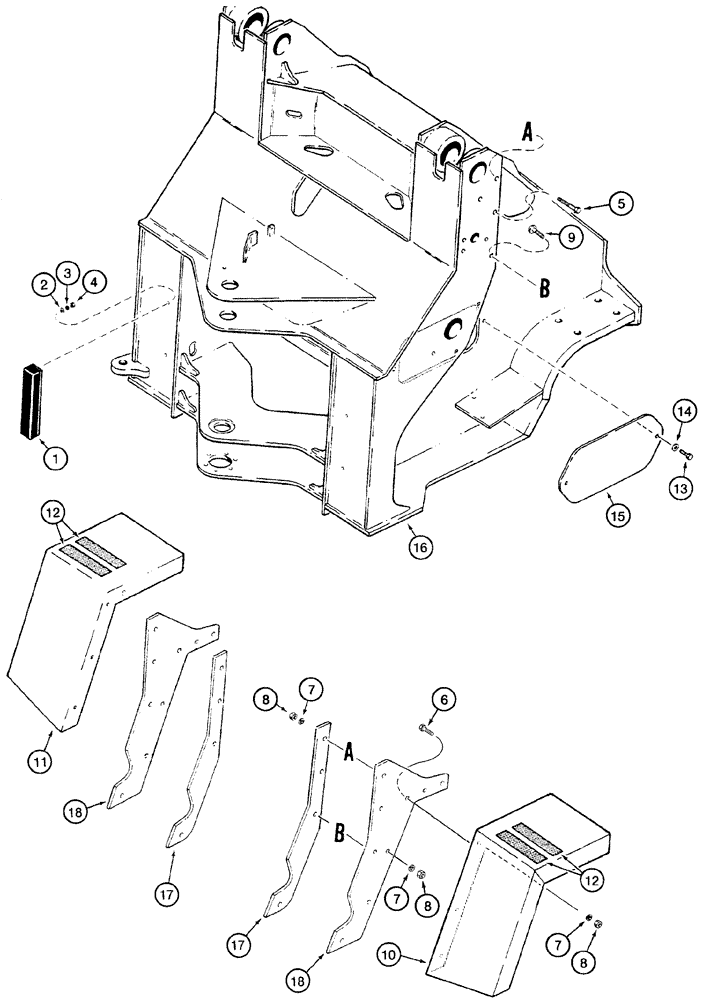

Запчасти Case 621C (09-031) - FRAME, FRONT FENDERS, EUROPE ONLY, XT LOADER (09) - CHASSIS

1

L127077

HITCH DAMPER

BUMPER chassis

2шт.

2

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

7

892-11012

LOCK WASHER,M12

No Longer Used, Order: P/N 896-11012

18шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Replaces P/N 892-11012

18шт.

8

829-1412

NUT,M12, Cl 10.9

No longer used, Order P/N 832-10412

18шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

Replaces P/N 829-1412

18шт.

9

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

BOLT, M12 x 80

4шт.

10

339966A1

FENDER

front, right hand

1шт.

11

339962A1

FENDER

front, left hand

1шт.

12

D55216

PAD,2" x 9"

front fender, 2 x 9 in

4шт.

13

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

15

L125240

LARGE PLATE

PLATE, LARGE COVER front frame

2шт.

16

313884A1

CHASSIS

FRAME front chassis

1шт.

17

124810A1

SPACER

fender

2шт.

18

E137454

SUPPORT

fender

2шт.
