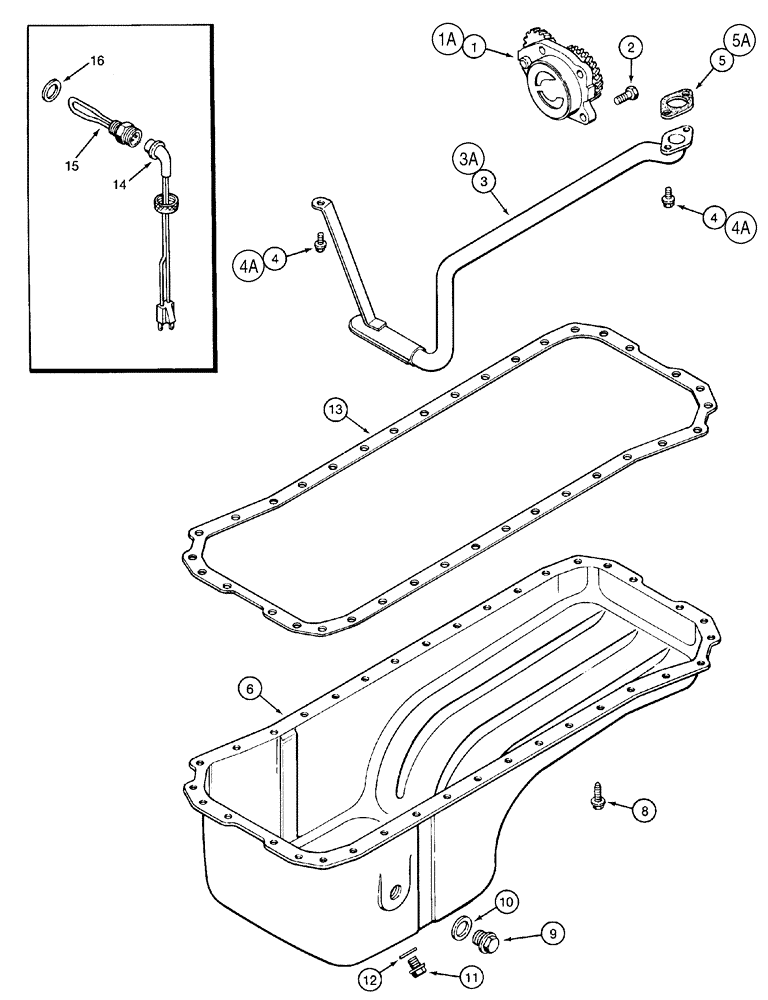

Запчасти Case 621C (02-015) - OIL PUMP, PAN HEATER (NORTH AMERICA), 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J941742

PUMP, ENGINE OIL

no longer used, Order: P/N J937404

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP North America only, no longer used, Order: P/N JR937404

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP no longer used, Order: P/N JC937404

1шт.

1a

J937404

PUMP, ENGINE OIL

Replaces: P/N J941742

1шт.

JR937404

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A only, Replaces: P/N JR941742

1шт.

JC937404

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Replaces: P/N JC926203 Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J909373

TUBE

no longer used, Order: P/N J934942

1шт.

3a

J934942

TUBE,1" OD

Replaces: P/N J909373

1шт.

4

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

No longer used, Order P/N 845-8020

3шт.

4a

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Replaces P/N J907860

2шт.

5

J931349

GASKET

no longer used, Order: P/N J938157

1шт.

5a

J938157

GASKET,1.2mm Thk

Replaces: P/N J931349

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

36шт.

9

J924148

PLUG,M22 x 1.5

M22

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

11

J924147

PLUG,M18 x 1.5

M18

1шт.

12

J920773

SEALING WASHER

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET pan, Order: P/N A77676, P/N A77979

1шт.

A77676

GASKET KIT

Consists of: Refs. 5, 12, 13, no longer used, Order: P/N A77979

1шт.

A77979

GASKET KIT

Consists of: Refs. 5, 10, 12, 13, Replaces: P/N A77676

1шт.

A77490

KIT

heater, 120V, Consists of: Refs. 14, 15, also Order: P/N J902425, Engine Oil

1шт.

14

196466A1

ELECTRIC CABLE

72 in, (1829), Engine Oil Heater

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT, Engine Oil Heater

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

engine oil heater

1шт.
