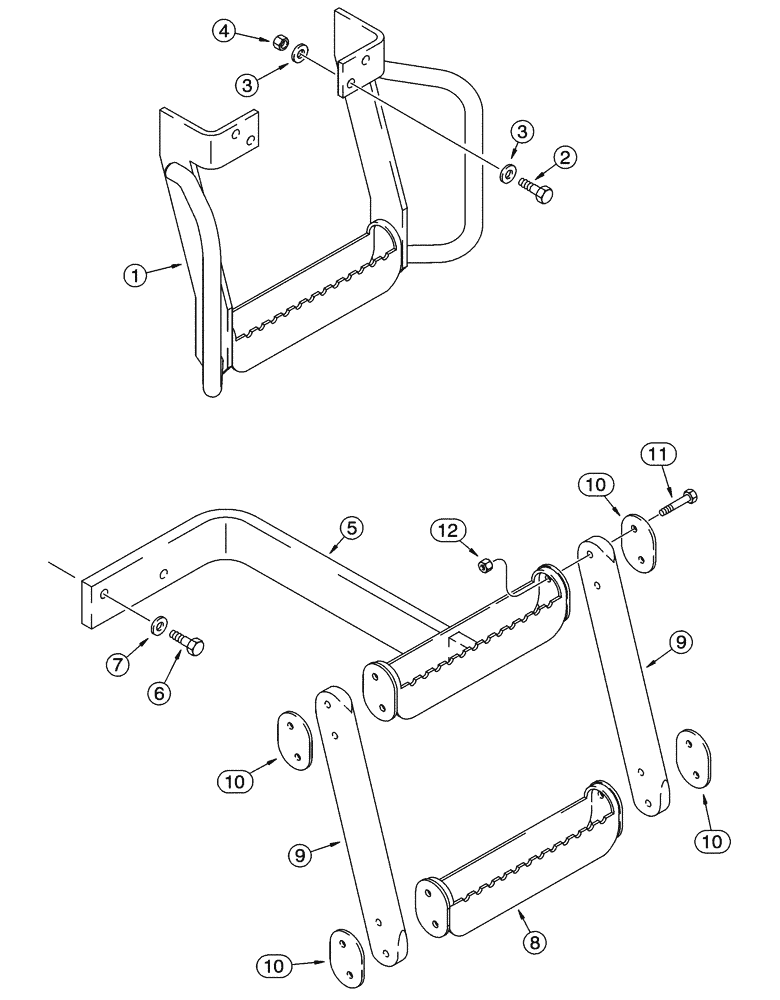

Запчасти Case 621C (09-025) - STEPS RIGHT SIDE ACCESS, NORTH AMERICA AND EUROPE (09) - CHASSIS

1

313434A1

STEP

rear frame, top

1шт.

2

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

8шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

5

319936A1

STEP

rear frame, center, right hand

1шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

8

311075A1

STEP

rear frame, lower

1шт.

9

108751A1

SUPPORT

HANGER

2шт.

10

311069A1

LARGE PLATE

PLATE, LARGE SUPPORT

4шт.

11

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

8шт.
