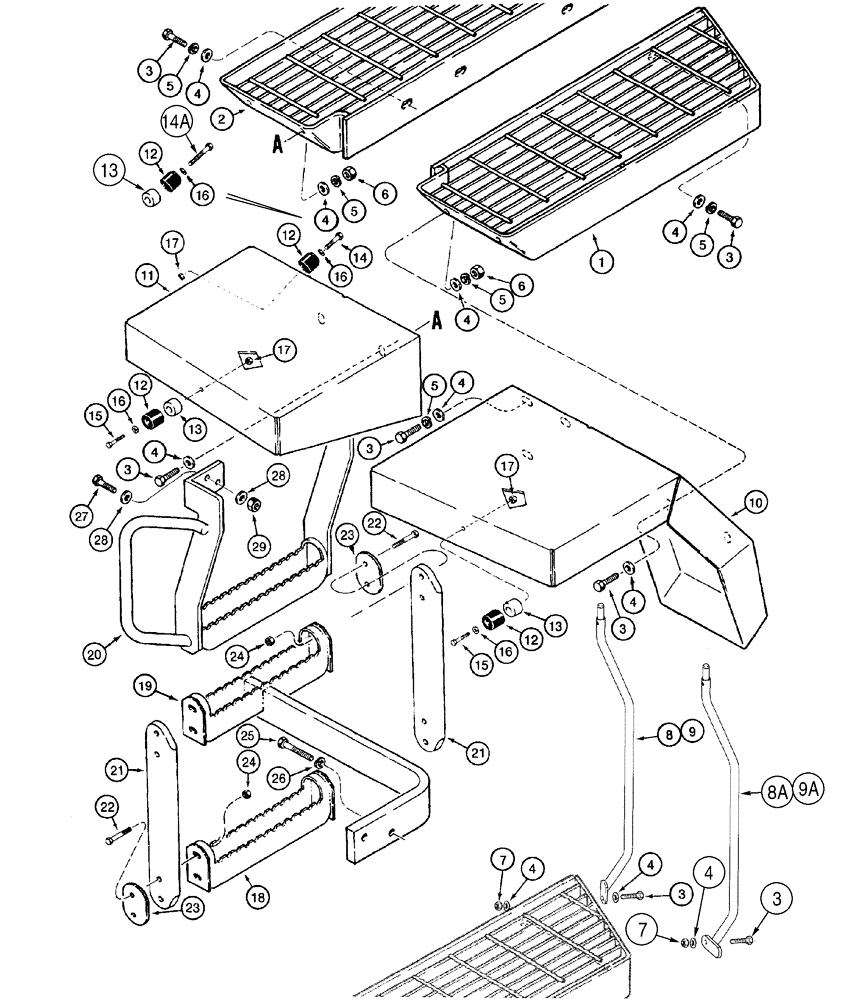

Запчасти Case 621C (09-024) - FENDERS, REAR STEPS, EUROPE ONLY (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
314378A2
STEP
operators compartment, right hand
1шт.
2
314377A2
STEP
operators compartment, left hand
1шт.
3
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
18шт.
4
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
24шт.
5
892-11012
LOCK WASHER,M12
12-16шт.
6
829-1412
NUT,M12, Cl 10.9
No longer used, Order P/N 832-10412
4шт.
6
832-10412
NUT,M12 x 1.75, Cl 8
Replaces P/N 829-1412
4шт.
7
832-10412
NUT,M12 x 1.75, Cl 8
2шт.
8
296420A1
GRAB RAIL
assist, right hand, no longer used, Order: P/N 296420A1
1шт.
8a
296420A2
HANDLE
assist, Right Hand, Replaces: P/N 296420A1
1шт.
9
296418A1
GRAB RAIL
assist, left hand, no longer used, Order: P/N 296418A2
1шт.
9a
296418A2
HANDLE
assist, left hand, Replaces: P/N 296418A1
1шт.
10
314620A1
FENDER
rear, right hand
1шт.
11
314619A1
FENDER
rear, left hand
1шт.
12
L126483
BUMPER
DOOR
3шт.
13
311070A1
SPACER
2-3шт.
14
827-6040
BOLT,Hex, M6 x 40mm, Cl 10.9
Used with 12
1шт.
14a
827-6070
BOLT,Hex, M6 x 70mm, Cl 10.9
Used with Refs 12, 13
1шт.
15
827-6060
BOLT,Hex, M6 x 60mm, Cl 10.9
2шт.
16
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
3шт.
18
311075A1
STEP
1шт.
19
313435A1
STEP
rear frame, center
1шт.
20
313434A1
STEP
rear frame, top, if used
1шт.
21
108751A1
SUPPORT
HANGER
2шт.
22
827-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9
8шт.
23
311069A1
LARGE PLATE
PLATE, LARGE SUPPORT
4шт.
24
832-10410
NUT,M10 x 1.5, Cl 8
8шт.
25
827-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
2шт.
26
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13.5 x 28 x 4 mm
2шт.
27
627-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd
No longer used, Order: P/N 627-12040
4шт.
27
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
Replaces P/N 627-12045
4шт.
28
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13.5 x 28 x 4 mm
8шт.
29
832-10412
NUT,M12 x 1.75, Cl 8
4шт.
Выбрано товаров: 34
