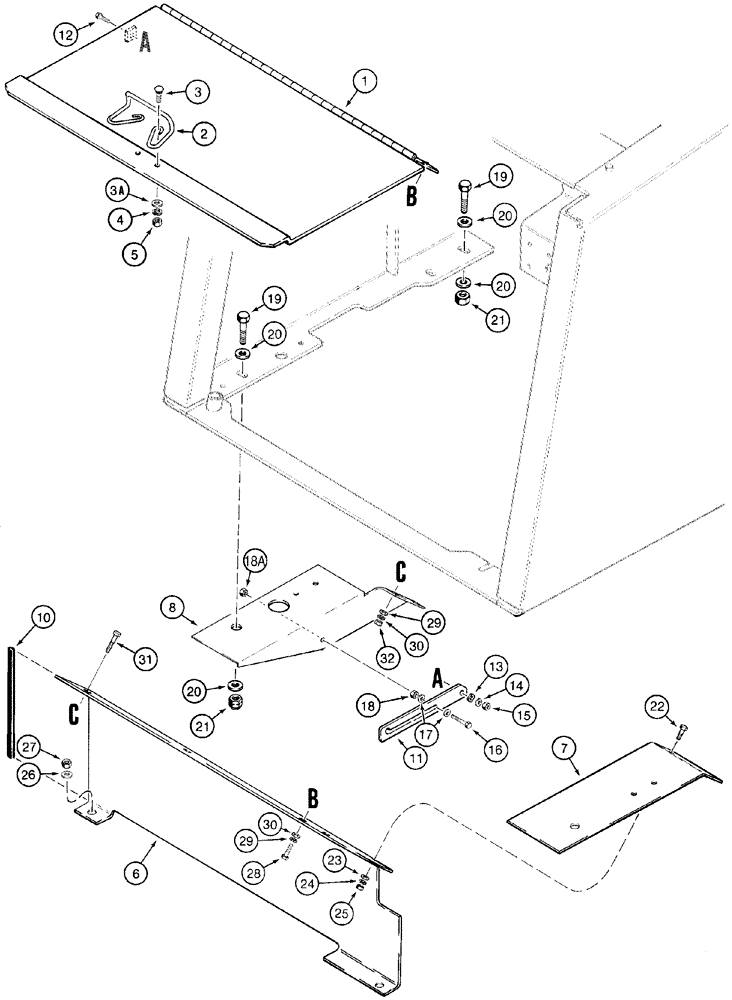

Запчасти Case 621C (09-022) - COVERS BATTERY BOX, EUROPE ONLY (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
315398A1
COVER
battery box, no longer available, Order: P/N 292963A1
1шт.
1
292963A1
COVER
battery box, Replaces: P/N 315398A1
1шт.
2
L125636
HANDLE
COVER
1шт.
3
711-5016
CARRIAGE BOLT,Sq Nk, M5 x 0.8 x 16mm, Cl 8.8
2шт.
4
892-11005
LOCK WASHER,M5
2шт.
5
824-1405
NUT,M5, Cl 5
2шт.
6
L128101
BAFFLE ASSY.
BOX battery
1шт.
7
177898A1
PLATE
SUPPORT, right hand, no longer available, Order: P/N L128192
1шт.
7
L128192
PLATE
SUPPORT, right hand, Replaces: P/N 177898A1
1шт.
8
177899A1
PLATE
SUPPORT, left hand, no longer available, Order: P/N L128172
1шт.
8
177899A1
PLATE
SUPPORT, left hand, Replaces: P/N 177899A1
1шт.
10
L127454
LINING
TRIM, 8-3/4 in, (220 mm), edge, cut from P/N F64277X
1шт.
11
L125491
LARGE PLATE
PLATE, LARGE SUPPORT cover
1шт.
12
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
1шт.
13
S69662
WASHER
1шт.
14
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
1шт.
15
832-10408
NUT,M8 x 1.25, Cl 8.8
1шт.
16
827-8035
BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9
1шт.
17
895-11008S
2шт.
18
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
Replaces P/N 829-1308
2шт.
18a
832-10408
NUT,M8 x 1.25, Cl 8.8
1шт.
19
627-16050
BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd
4шт.
20
896-15016
WASHER,17.5mm ID x 34mm OD x 5mm Thk
8шт.
22
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
No Longer Used, Order 627-10025
1шт.
23
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
1шт.
24
892-11010
LOCK WASHER,M10
1шт.
25
829-1410
NUT,M10 x 1.5, Cl 10.9
1шт.
26
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
2шт.
27
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
28
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
3шт.
29
892-11010
LOCK WASHER,M10
4шт.
30
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
4шт.
32
829-1410
NUT,M10 x 1.5, Cl 10.9
1шт.
Выбрано товаров: 37
