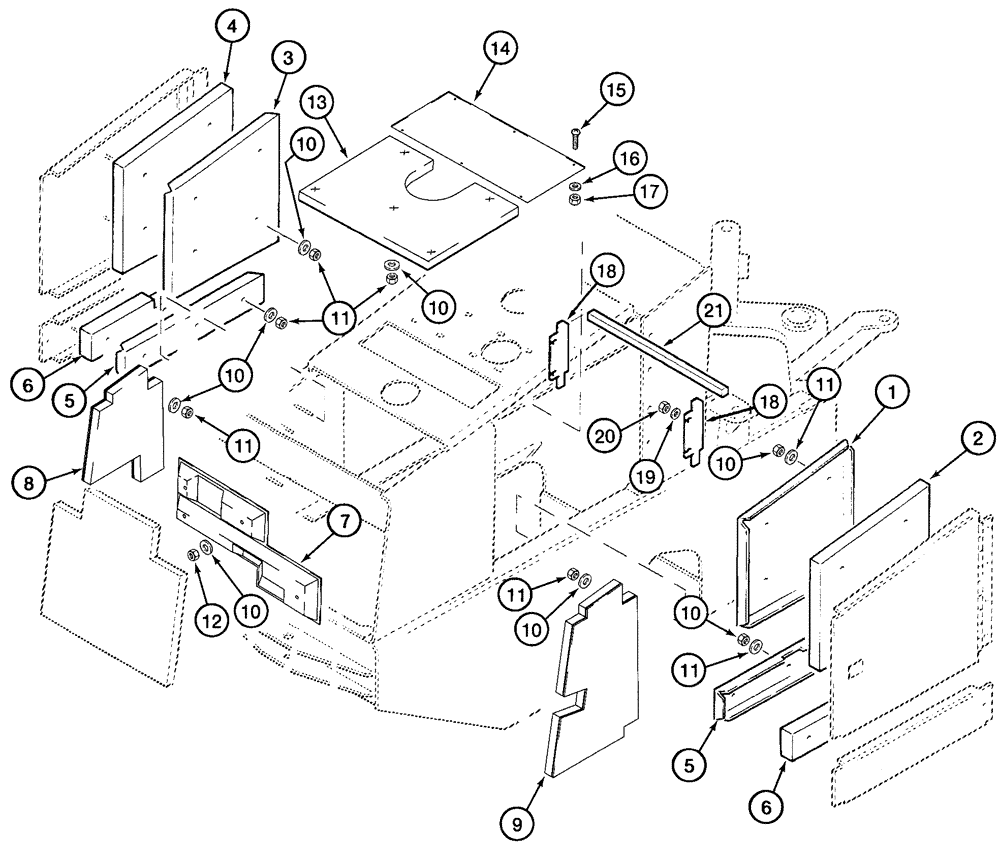

Запчасти Case 621C (09-020) - INSULATION HOOD, EUROPE ONLY (09) - CHASSIS

1

117680A1

COVER

engine door, right hand

1шт.

2

117678A1

INSULATOR

COVER right hand

1шт.

3

117681A1

COVER

engine door, left hand

1шт.

4

117679A1

INSULATOR

COVER left hand

1шт.

5

117688A1

COVER

PANEL insulation, engine, lower

2шт.

6

117687A1

NOISE PROTECTION

INSULATION engine, lower

2шт.

7

175109A2

PROTECTOR

hydraulic tank

1шт.

8

319477A2

INSULATOR

radiator guard, left hand

1шт.

9

319478A2

INSULATOR

radiator guard, right hand

1шт.

10

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

29шт.

11

234-10431

CROWN NUT,Crown, 5/16"-18

25шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

177869A1

PANEL

INSULATION top rear

1шт.

14

144213A1

LARGE PLATE

PLATE, LARGE SHIELD protective, air intake

1шт.

15

161-114

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 5/8"

6шт.

16

495-81286

WASHER,.281" x 1 1/8" x .060"

6шт.

17

231-1444

NUT,1/4"-20, GB

6шт.

18

175207A2

COWL

PLATE cover

2шт.

19

895-15012

WASHER,M12 x 28 x 2.5

13.5 x 28 x 2.5 mm, no longer used, Order: P/N 895-15010

4шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Replaces P/N 895-15012

4шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

21

182916A1

PANEL

INSULATION lower, hydraulic tank

1шт.
