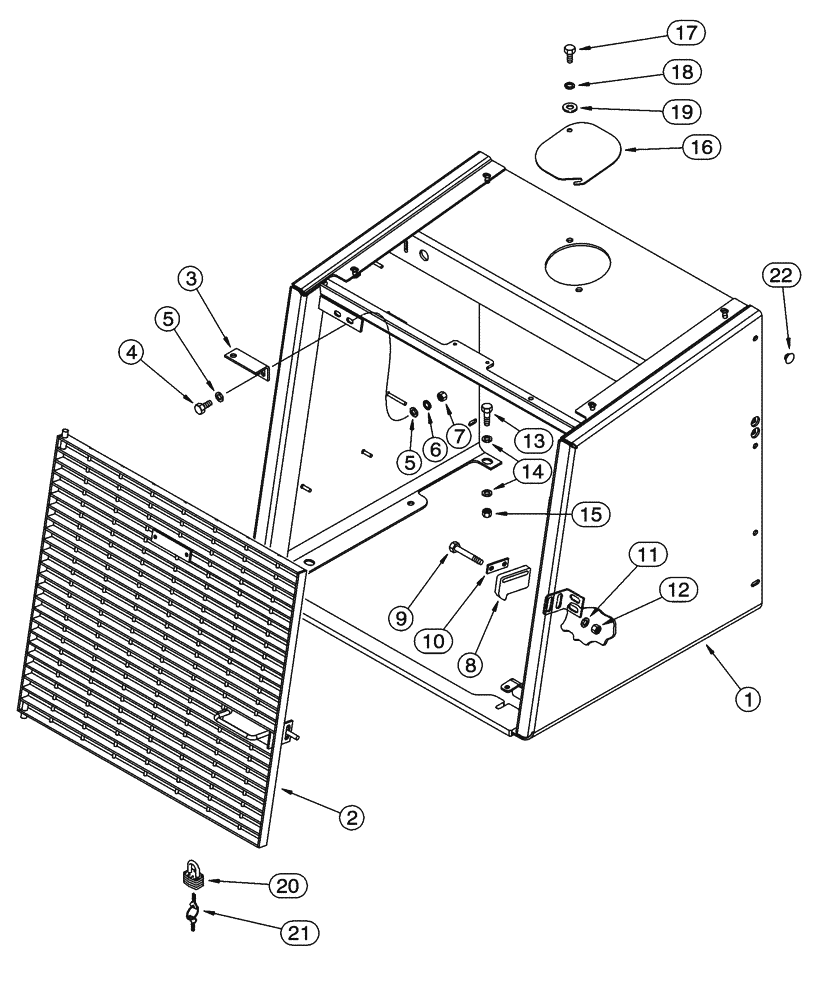

Запчасти Case 621C (09-019) - GUARD, RADIATOR GRILLE, EUROPE ONLY (09) - CHASSIS

1

313223A2

CASING

GUARD radiator, no longer available, Order: P/N 313223A4

1шт.

1

313223A4

CASING

GUARD radiator, Replaces: P/N 313223A2, P/N 313223A3

1шт.

2

284745A1

GRILLE ASSY

1шт.

3

313224A1

BRACKET

SUPPORT grille

1шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

L126920

LATCH

GRILLE

1шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

10

L126841

LARGE PLATE

PLATE, LARGE CATCH

1шт.

11

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

14

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

15

832-10416

NUT,M16 x 2, Cl 8

4шт.

16

L128053

COVER

lockup, radiator

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

18

892-11010

LOCK WASHER,M10

2шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

D93753

PADLOCK

includes keys, Includes: Ref. 21

1шт.

21

D93751

SET OF 2 KEYS

Yale lock, if used

2шт.

21

R29555

KEY

Master lock, if used

2шт.

22

L126856

RIVET

rubber

6шт.
