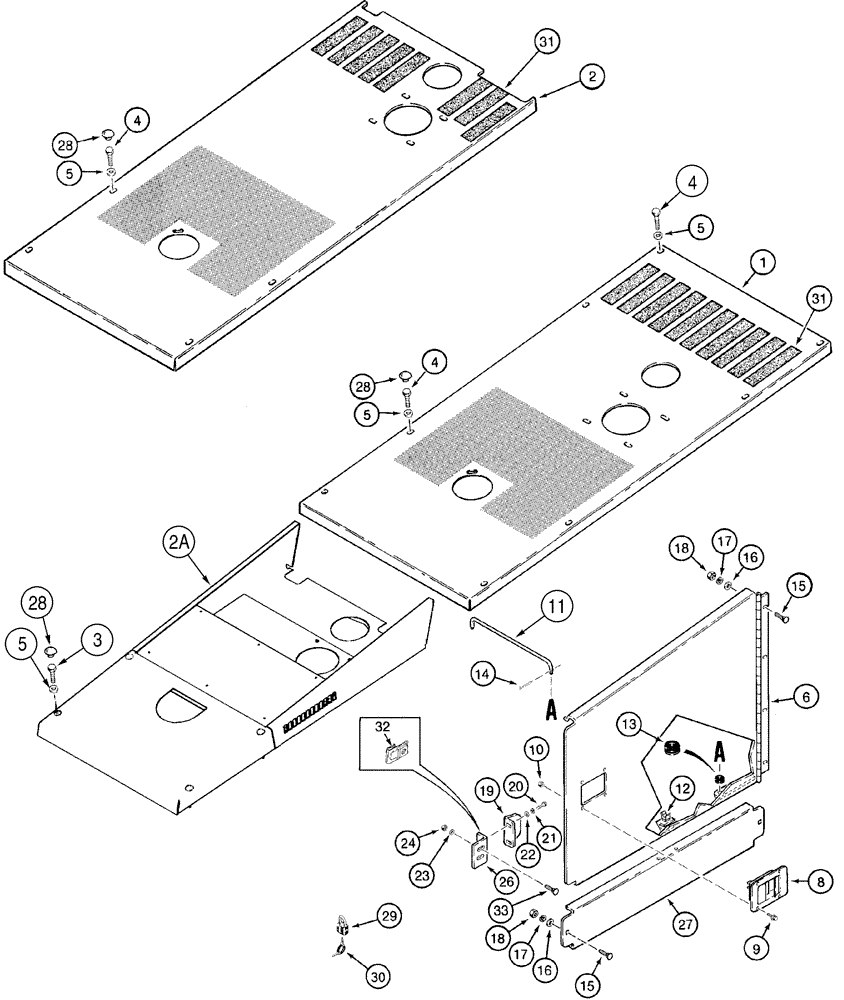

Запчасти Case 621C (09-017) - HOOD DOORS, SIDE, NORTH AMERICA AND EUROPE (09) - CHASSIS

1

292939A1

COWL

models without air conditioning

1шт.

2

292940A1

COWL

models with air conditioning, Serial Range: -JEE0093371

1шт.

2

292940A1

COWL

models with air conditioning, Serial Range: -JEE0093371

1шт.

2a

314168A1

HOOD ASSY.

models with air conditioning, Start Serial: JEE0093371

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

4

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

4-6шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4-8шт.

6

L127685

DOOR

hood side, right hand, North America only

1шт.

6

117677A1

DOOR ASSY.

hood side, right hand, Europe only

1шт.

7

L127686

DOOR

hood side, left hand, North America only, not shown

1шт.

7

117675A1

DOOR ASSY.

hood side, left hand, Europe only, not shown

1шт.

8

R56221

LATCH

door handle

2шт.

9

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

10

231-5344

FLANGE NUT,Flg, 1/4"-20

8шт.

11

L128467

ROD

door open

2шт.

12

L128879

CLIP,ELECTRICAL

RETAINER

2шт.

13

248-2397

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

2шт.

14

32-812

COTTER PIN,1/8" x 3/4"

2шт.

15

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

12шт.

16

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

12шт.

17

492-11038

LOCK WASHER,3/8"

12шт.

18

425-106

NUT,3/8"-16, Cl 5

12шт.

19

L127958

LARGE PLATE

PLATE, LARGE door

2шт.

20

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

21

492-11031

LOCK WASHER,5/16"

4шт.

22

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

23

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

24

231-1446

NUT,3/8" - 16, Gr 5

4шт.

25

L126856

RIVET

rubber, not shown, See figures 9-79 - 9-83

8шт.

26

112924A1

SUPPORT

CATCH

2шт.

27

L128574

COVER

lower, North America only

2шт.

27

117686A1

COVER

lower, Europe only

2шт.

28

353-413

PLUG,Dome, 1.187" hole, Nylon

1-3/16

4-8шт.

29

D93753

PADLOCK

includes keys, Includes: Ref. 30

2шт.

30

D93751

SET OF 2 KEYS

Yale lock, if used

2шт.

30

R29555

KEY

Master lock, if used

2шт.

31

D55216

PAD,2" x 9"

2 x 9 in, hood, front

8-10шт.

32

131-637

SPRING NUT,Ret, J, 5/16"-18

4шт.

33

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.
