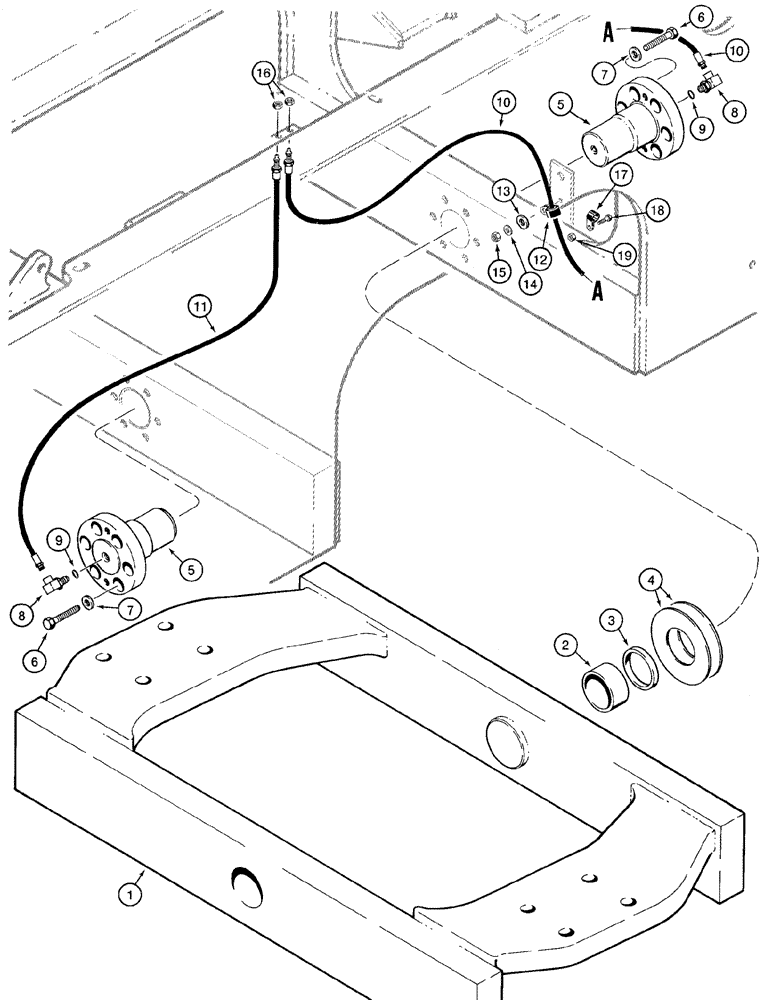

Запчасти Case 621C (09-016) - TRUNNION LUBRICATION LINES (09) - CHASSIS

115278A1

TRUNNION

rear frame, Includes: Refs. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TRUNNION

1шт.

2

L109938

BUSHING,70.18mm ID x 82.69mm OD x 41mm L

TRUNNION

2шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

SEAL

2шт.

4

302573A1

SHIM

0.125 in, (3.2 mm)

1шт.

4

302574A1

SHIM

0.187 in, (4.8 mm)

1шт.

5

L119222

AXLE PIN

TRUNNION

2шт.

6

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

12шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

12шт.

8

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

Includes: Ref. 9

2шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

313079A1

HOSE ASSY.

lubrication, front trunnion, 73-5/16 in, (1861 mm)

1шт.

11

313080A1

HOSE ASSY.

lubrication, rear trunnion, 101-5/8 in, (1861 mm)

1шт.

12

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

6шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

4шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Replaces P/N 895-18012

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

16

F53473

LOCK NUT,1/8-27 NPSM

special, 1/8 PT

2шт.

17

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

1шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
