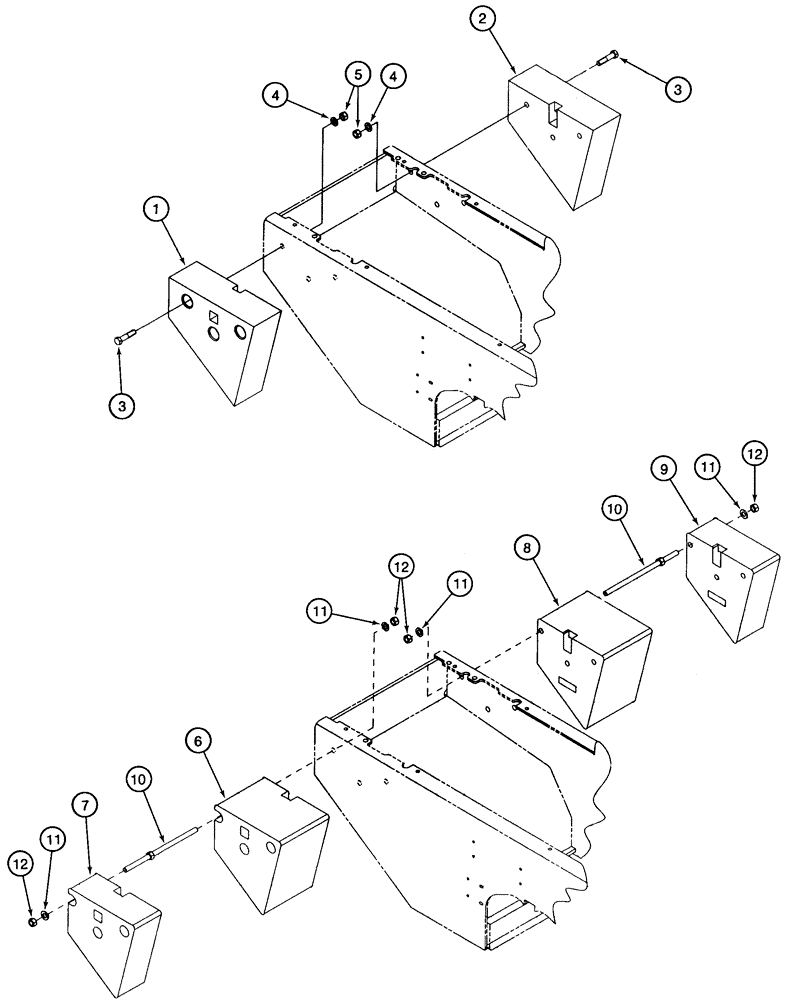

Запчасти Case 621C (09-015) - COUNTERWEIGHTS, EUROPE ONLY, 2000 LB TOTAL WEIGHT (09) - CHASSIS

1

121114A1

COUNTERWEIGHT

rear, right hand, 453.6 kg, 1000 lb

1шт.

2

121113A1

COUNTERWEIGHT

rear, left hand, not illustrated, 453.6 kg, 1000 lb

1шт.

3

326-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

6шт.

4

496-21106

WASHER,1 1/16" x 2" x .209", HDN

6шт.

5

429-1016

NUT,1"-8, G8

6шт.

6

121114A1

COUNTERWEIGHT

rear, right hand, 453.6 kg, 1000 lb, 3000 pound total weight

1шт.

7

121116A1

BALANCER

rear, right hand, 226.8 kg, 500 lb, 3000 pound total weight

1шт.

8

121113A1

COUNTERWEIGHT

rear, left hand, 453.6 kg, 1000 lb, not illustrated, 3000 pound total weight

1шт.

9

121115A1

BALANCER

rear, left hand, not illustrated, 226.8 kg, 500 lb, 3000 pound total weight

1шт.

10

236585A1

STUD

mounting, counterweight, 25 x 530 mm, 3000 pound total weight

6шт.

11

496-21106

WASHER,1 1/16" x 2" x .209", HDN

3000 pound total weight

12шт.

12

429-1016

NUT,1"-8, G8

3000 pound total weight

12шт.
