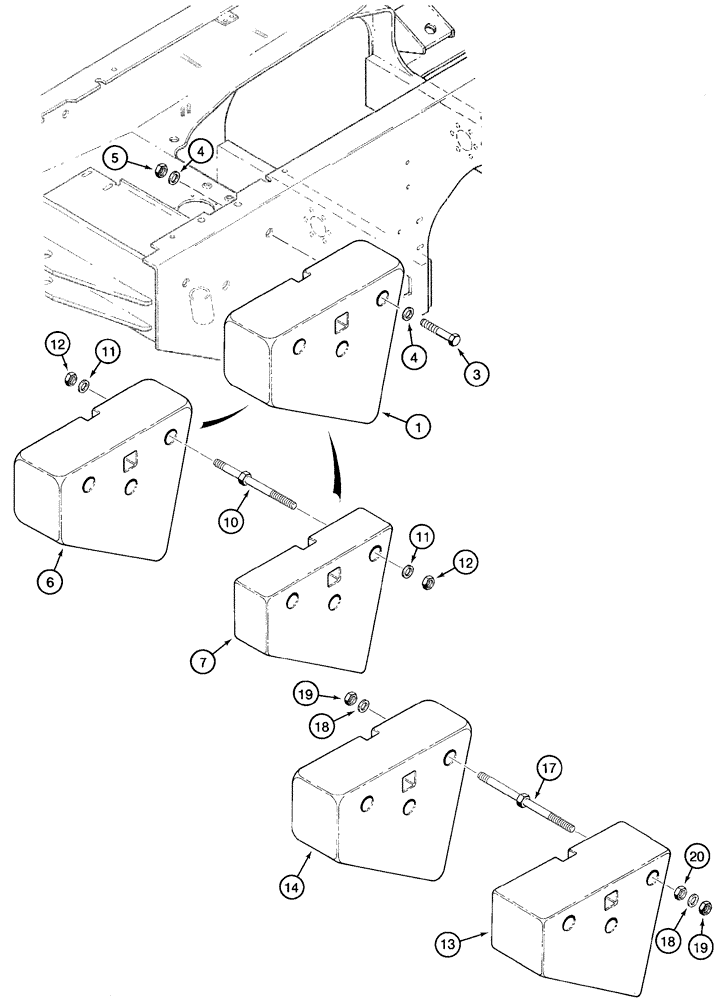

Запчасти Case 621C (09-014) - COUNTERWEIGHTS, NORTH AMERICA ONLY, 1500 LB TOTAL WEIGHT (09) - CHASSIS

1

L127841

WEIGHT

COUNTER, rear, right hand, 340.2 kg, 750 lb

1шт.

2

L127842

WEIGHT

COUNTER, rear, left hand, 340.2 kg, 750 lb, not illustrated

1шт.

3

326-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

6шт.

4

496-21106

WASHER,1 1/16" x 2" x .209", HDN

6шт.

5

429-1016

NUT,1"-8, G8

6шт.

6

L127841

WEIGHT

COUNTER rear, right hand, 340.2 kg, 750 lb, 2500 pound total weight

1шт.

7

L125468

BALANCER

rear, right hand, 226.8 kg, 500 lb, 2500 pound total weight

1шт.

8

L127842

WEIGHT

COUNTER rear, left hand, not illustrated, 340.2 kg, 750 lb, 2500 pound total weight

1шт.

9

L125469

BALANCER

COUNTERWEIGHT rear, left hand, not illustrated, 226.8 kg, 500 lb, 2500 pound total weight

1шт.

11

496-21106

WASHER,1 1/16" x 2" x .209", HDN

2500 pound total weight

12шт.

12

429-1016

NUT,1"-8, G8

2500 pound total weight

12шт.

13

L127841

WEIGHT

COUNTER, rear, right hand, 340.2 k, 750 lb, 3500 pound total weight

1шт.

14

L125466

BALANCER

rear, right hand, 453.6 kg, 1000 lb, 3500 pound total weight

1шт.

15

L127842

WEIGHT

340.2 kg, 750 lb, rear, left hand, not illustrated, 3500 pound total weight

1шт.

16

L125467

BALANCER

rear, left hand, 453.6 kg, 1000 lb, not illustrated, 3500 pound total weight

1шт.

10

L129903

STUD

BOLT special, mounting, counterweight, 2500 pound total weight

6шт.

17

235066A1

STUD

25 x 460 mm, mounting, counterweight, 3500 pound total weight

6шт.

18

496-21106

WASHER,1 1/16" x 2" x .209", HDN

3500 pound total weight

12шт.

19

429-1016

NUT,1"-8, G8

3500 pound total weight

12шт.

20

L125493

SPECIAL NUT

special, 3500 pound total weight

6шт.
