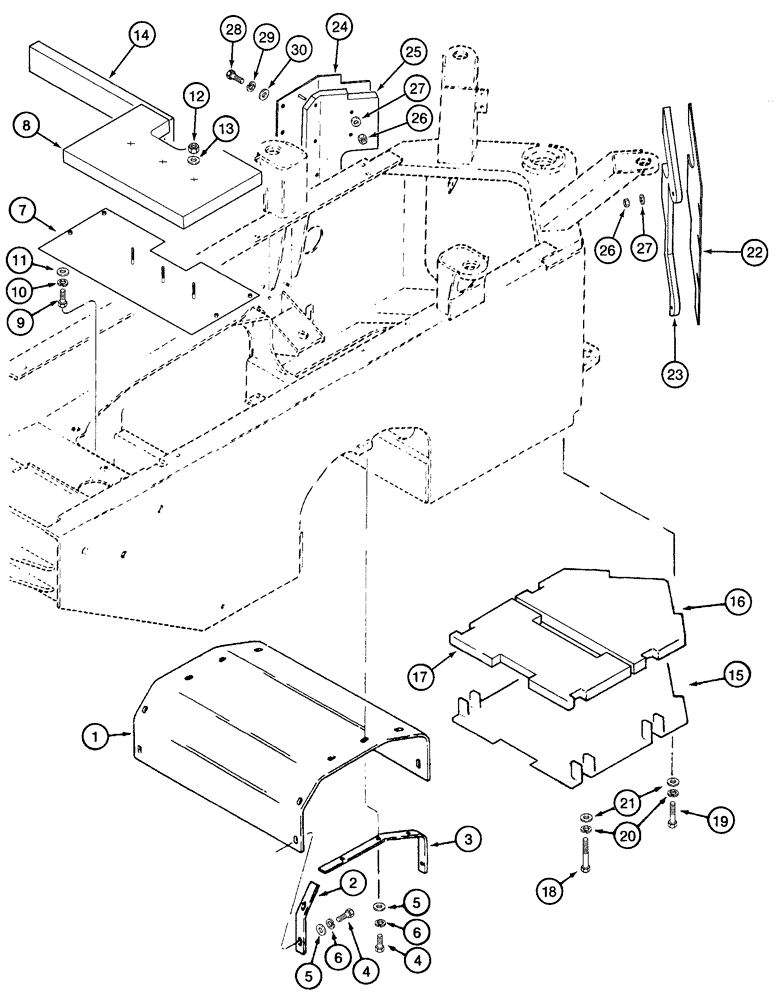

Запчасти Case 621C (09-013) - INSULATION REAR CHASSIS, EUROPE ONLY (09) - CHASSIS

1

E133532

NOISE PROTECTION

INSULATION axle

1шт.

2

E133025

SUPPORT

STRAP short

2шт.

3

116983A1

PROFILE

STRAP long

2шт.

4

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

14шт.

5

495-21044

WASHER,3/8"

lock, (7/16 x 1 x 5/64 in)

14шт.

6

492-11038

LOCK WASHER,3/8"

14шт.

7

119209A1

SUPPORT

BRACKET, mounting, insulation

1шт.

8

119128A1

NOISE PROTECTION

INSULATION rear trunnion

1шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

4шт.

12

234-10431

CROWN NUT,Crown, 5/16"-18

3шт.

13

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

3шт.

14

182521A1

PANEL

INSULATION rear chassis

1шт.

15

319021A1

INSULATOR

PLATE mounting

1шт.

16

319022A1

INSULATOR

transmission, front

1шт.

17

319024A1

INSULATOR

transmission, rear

1шт.

18

426-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

19

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

20

492-11038

LOCK WASHER,3/8"

6шт.

21

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

special

6шт.

22

319025A1

INSULATOR

mounting, insulation

1шт.

23

319027A1

INSULATOR

articulation, right hand

1шт.

24

119699A1

SUPPORT

mounting, insulation

1шт.

25

119515A1

NOISE PROTECTION

INSULATION articulation, left hand

1шт.

26

234-10431

CROWN NUT,Crown, 5/16"-18

9шт.

27

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

9шт.

28

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

3шт.

29

492-11038

LOCK WASHER,3/8"

3шт.

30

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

3шт.
