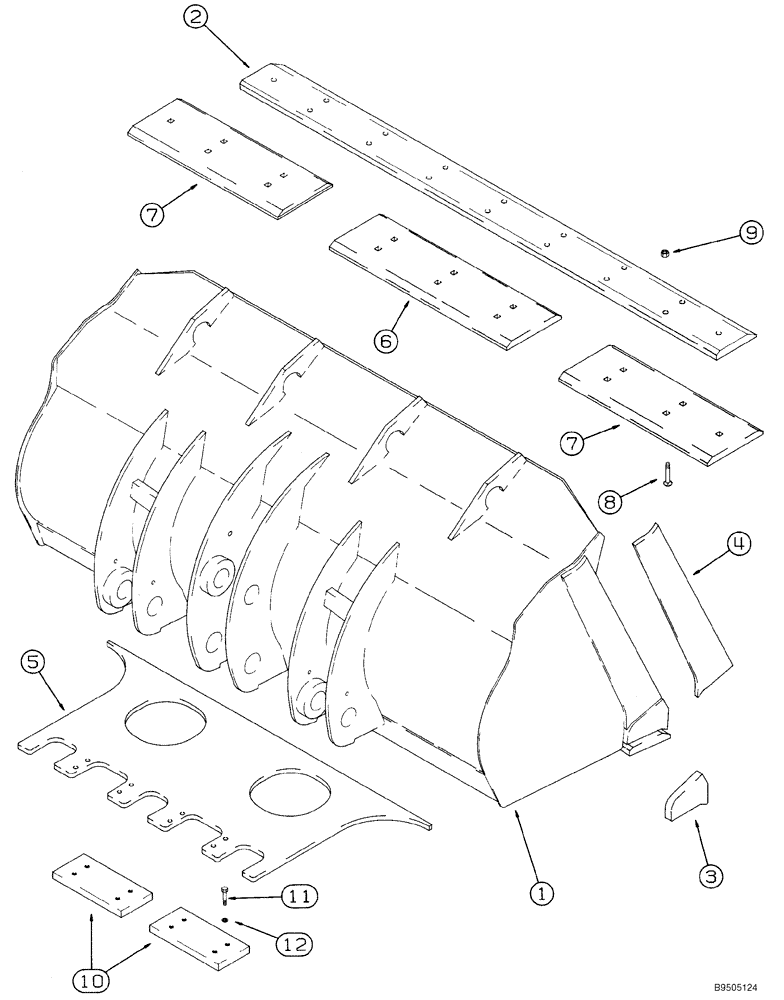

Запчасти Case 621C (09-010) - BUCKETS - LOADER, Z-BAR LOADER, BUCKET : 2,1 CU M (2.75 CU YD) (09) - CHASSIS

112094A1

BUCKET

BUCKET ASSY., loader, order from machinery price list, Consists of: Refs. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET

1шт.

2

L127427

EDGE, CUTTING

front, welded on

1шт.

3

115620A1

EDGE

corner, welded on

2шт.

4

112100A1

EDGE

side, welded on

2шт.

5

112104A1

LARGE PLATE

PLATE, LARGE bottom, welded on

1шт.

6

L127038

EDGE, CUTTING

center, bolt on cutting edge

1шт.

7

L127429

EDGE, CUTTING

end, bolt on cutting edge

2шт.

8

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

BOLT plow, 3/4 x 3; 8, on cutting edge

16шт.

9

429-1012

NUT,3/4"-10, G8

Bolt on cutting edge

16шт.

10

131994A1

PLATE

wear, bottom, bolt on cutting edge

2шт.

11

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

on cutting edge

8шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

special, hardened, 16.7 x 33.3 x 3.4, bolt on cutting edge

8шт.
