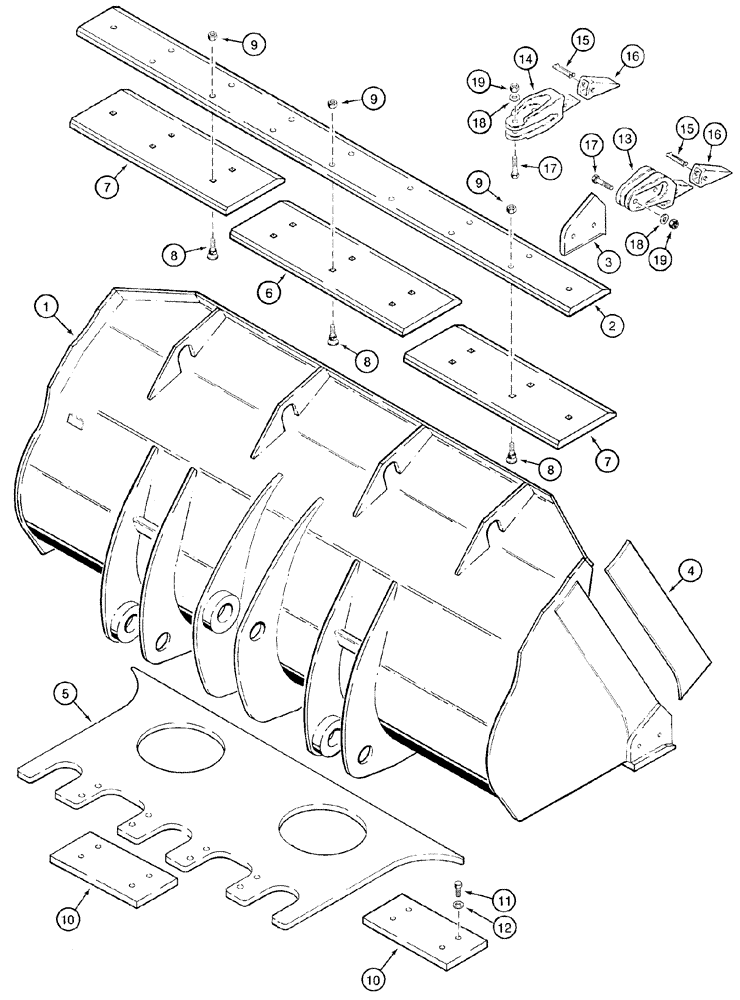

Запчасти Case 621C (09-008) - BUCKET - LOADER, Z-BAR LOADER, BUCKET : 1,7 CU M (2.25 CU YD) (09) - CHASSIS

109297A1

BUCKET

ASSY., loader, Order from Machinery Price List, Consists of: Refs. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

bucket

1шт.

2

L127359

EDGE, CUTTING

front, welded on

1шт.

3

116167A1

EDGE, CUTTING

corner, welded on

2шт.

4

106298A1

EDGE, CUTTING

side, welded on

1шт.

5

106300A1

PLATE

wear, bottom, welded on

1шт.

6

L127366

EDGE, CUTTING

center, bolt on cutting edge

1шт.

7

L127367

EDGE, CUTTING

end, bolt on cutting edge

2шт.

8

R56474

PLOW BOLT

Plow, 3/4 x 2-1/2; 8, on cutting edge

16шт.

9

429-1012

NUT,3/4"-10, G8

Bolt on cutting edge

16шт.

10

113946A1

PLATE

wear, bottom, bolt on cutting edge

2шт.

11

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

on cutting edge

8шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

special, hardened, 16.7 x 33.3 x 3.4, bolt on cutting edge

8шт.

254825A1

TEETH

TOOTH ASSY., center, Consists of: Ref. 13, 15, and 16, bucket

7шт.

254824A1

TEETH

TOOTH ASSY., corner, Consists of: Ref. 14, 15, and 16, bucket

2шт.

13

NSS

NOT SOLD SEPARAT

SHANK center, bucket teeth

1шт.

14

NSS

NOT SOLD SEPARAT

SHANK, corner, bucket teeth

1шт.

15

254815A1

PIN

point retaining, bucket teeth

1шт.

16

254820A1

TOOTH

POINT standard, bucket teeth

1шт.

16

254822A1

TOOTH

POINT abrasion, not shown, bucket teeth

1шт.

16

254823A1

BUCKET TOOTH

POINT penetration, not shown, bucket teeth

1шт.

17

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

Bucket teeth

18шт.

18

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Bucket teeth

18шт.

19

425-1612

NUT,3/4"-10, G5, Hvy

Special, Bucket teeth

18шт.
