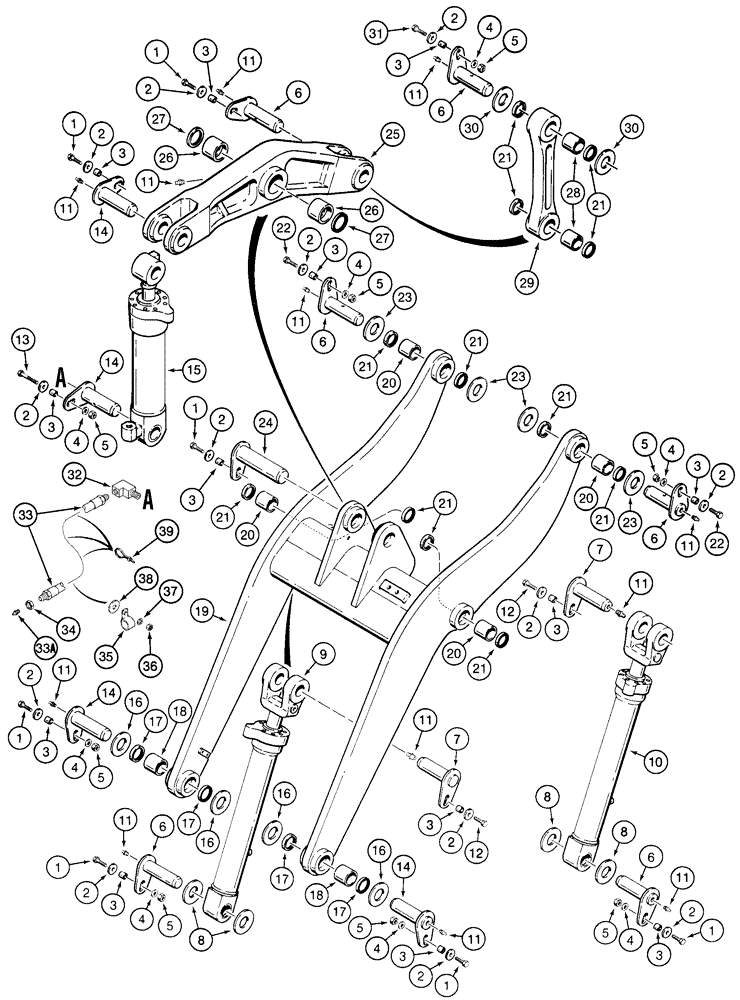

Запчасти Case 621C (09-005) - FRAME LOADER LIFT, Z BAR LOADER (09) - CHASSIS

1

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

7шт.

2

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

13шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

PIN mounting

10-13шт.

5

231-14110

LOCK NUT,5/8"-11, GB

8шт.

6

L128351

PIVOT PIN

9-13/16 in, (249 mm)

6шт.

7

L127118

HANDLED SHAFT

9 in, (249 mm)

2шт.

8

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

special

4шт.

9

280707A1

CYLINDER ASSY.

127 ID x 834 mm strk, lift cylinder, left hand, See figure 8-119

1шт.

10

280706A1

CYLINDER ASSY.

127 ID x 834 mm strk, lift cylinder, right hand, See figure 8-119

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9-11шт.

12

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

2шт.

13

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

14

L118674

PIVOT PIN

255 mm, 10 in

4шт.

15

1343552C2

CYLINDER ASSY.

152 ID x 544 mm strk, bucket tilt, See figure 8-123, no longer available, Order: P/N 339921A1

1шт.

15a

339921A1

CYLINDER ASSY.

152 ID x 544 mm strk, bucket tilt, See figure 8-123, Replaces: P/N 1343552C2

1шт.

16

L129131

WASHER,83.8mm ID x 152mm OD x 3.02mm Thk

special

4шт.

17

L128725

SEAL,82.55mm ID x 95.38mm OD x 7.9mm Thk

dust, loader lift frame, at chassis

4шт.

121481A1

ARM

FRAME ASSY., loader lift, Consists of: Refs.18 - 20

1шт.

18

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

loader lift frame, at chassis

2шт.

19

NSS

NOT SOLD SEPARAT

frame

1шт.

20

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

loader lift frame, at lift cylinder and bucket

4шт.

21

L128724

SEAL

dust

12шт.

22

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

2шт.

23

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

special, if used

1шт.

24

L118672

PIVOT PIN

13-5/8 in, (345 mm)

1шт.

232194A1

LINKAGE YOKE

bellcrank, loader bucket, Consists of: Refs. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

BELLCRANK

1шт.

26

L118709

BUSHING,95.42mm ID x 111.25mm OD x 82mm L

Bellcrank

2шт.

27

L118750

SEAL,92.71mm ID x 111.25mm OD x 7.95mm Thk

bellcrank pivot

2шт.

L118759

PITMAN ASSY.

link, bucket dump, Consists of: Refs. 28, 29

1шт.

28

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

2шт.

29

NSS

NOT SOLD SEPARAT

link

1шт.

30

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

if used

2шт.

31

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

1шт.

32

328082A1

ELBOW

special, 1/8 PT

1шт.

33

313681A1

HOSE ASSY.

81-7/8 in, (2080 mm) Includes: Ref. 33A

1шт.

33a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

1шт.

34

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

35

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

36

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

38

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

1шт.

39

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
