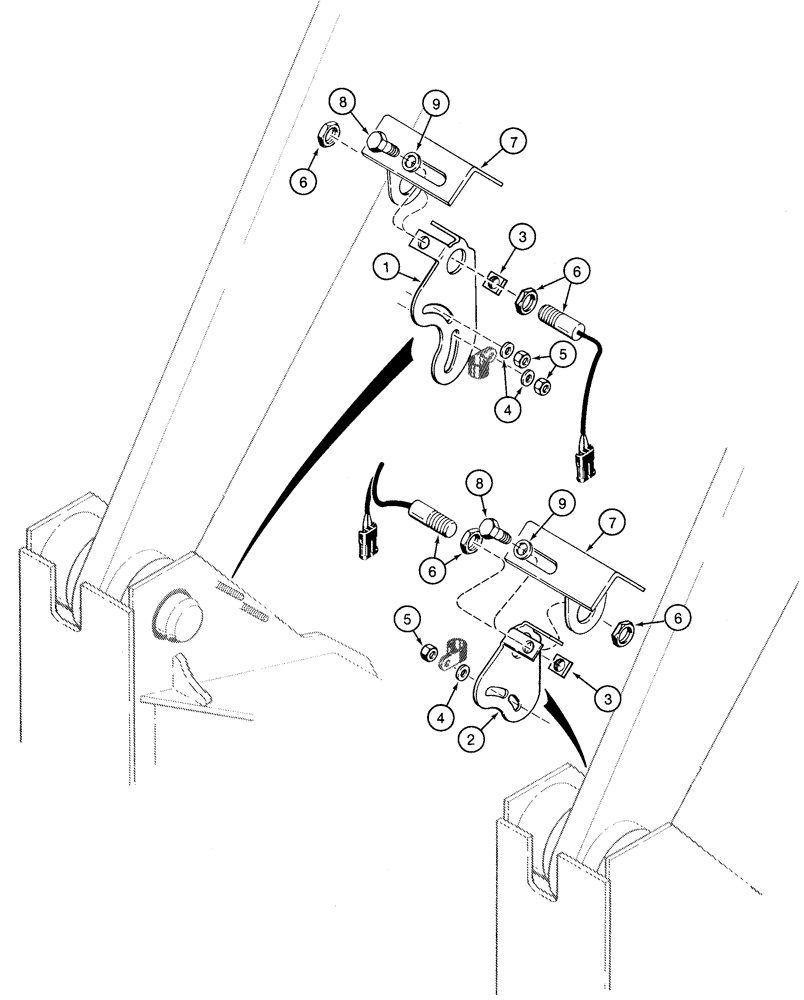

Запчасти Case 621C (09-004) - CONTROL, LOADER BUCKET HEIGHT - RETURN-TO-TRANSPORT, XT LOADER (09) - CHASSIS

1

115677A1

LARGE PLATE

PLATE, LARGE mounting, proximity switch, left hand

1шт.

2

115678A1

LARGE PLATE

PLATE, LARGE mounting, proximity switch, right hand, right hand

1шт.

3

131-856

SPRING NUT,Ret, J, 3/8"-16

4шт.

4

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

5

231-1446

NUT,3/8" - 16, Gr 5

4шт.

6

1546498C1

SWITCH

height control, return to transport, includes hardware

2шт.

7

116212A1

COVER

proximity switch, right hand

2шт.

8

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.
