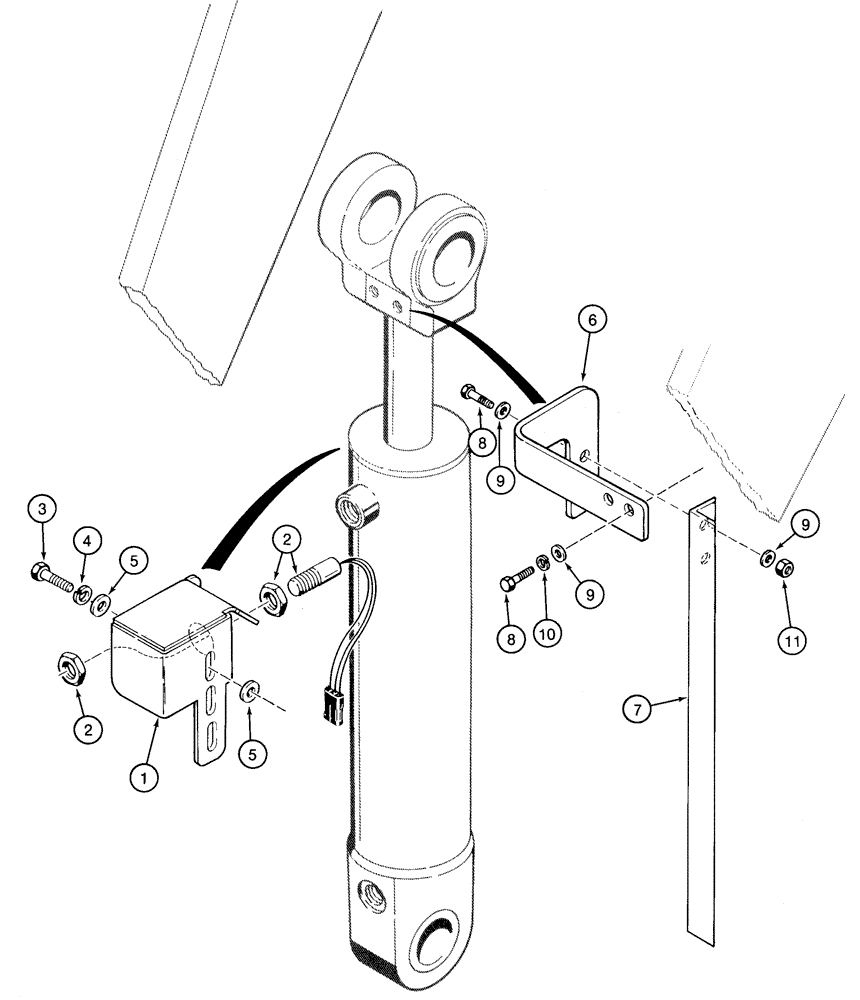

Запчасти Case 621C (09-002) - CONTROL RETURN-TO-DIG, XT LOADER (09) - CHASSIS

1

346342A1

SUPPORT

BRACKET mounting

1шт.

2

1546498C1

SWITCH

return to dig, includes hardware

1шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

6

346340A1

SUPPORT

BRACKET upper, at cylinder rod

1шт.

7

346338A1

ANGLE BAR

lower, actuator

1шт.

8

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

9

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

6шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

231-1446

NUT,3/8" - 16, Gr 5

2шт.
