Запчасти Case 621C (08-064[A]) - VALVE ASSY FLOW CONTROL (08) - HYDRAULICS

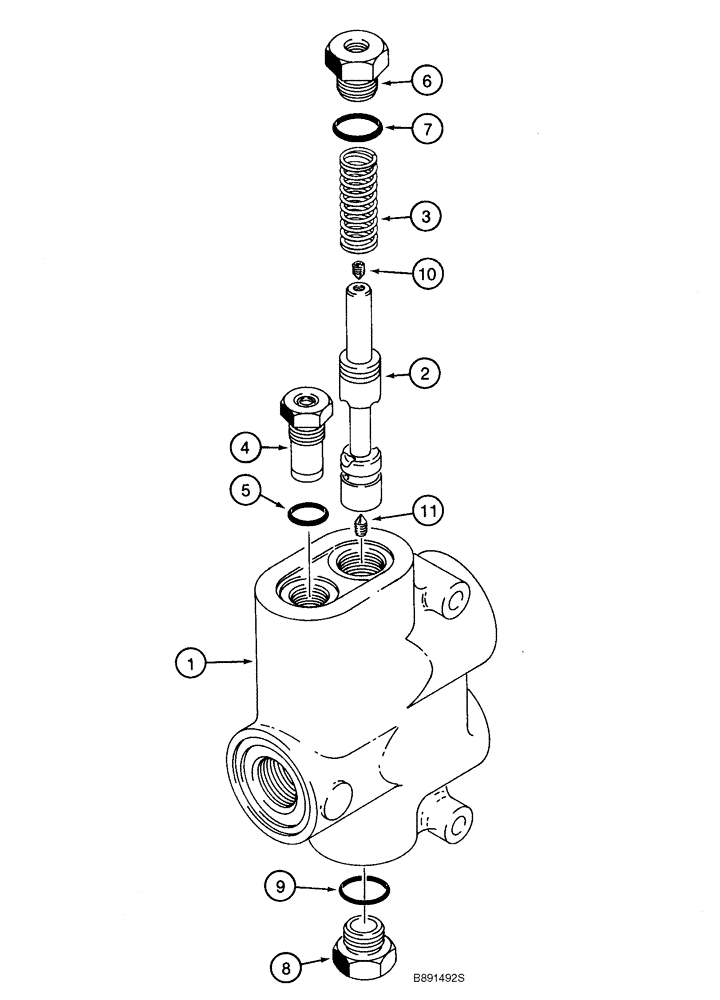

Схема запчастей Case 621C - (08-064[A]) - VALVE ASSY FLOW CONTROL (08) - HYDRAULICS
4
3
7
8
1
2
9
5
11
6
10

Артикул

Название

Примечание

Количество

L126106

VALVE

flow control, Consists of: Refs. 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

S114008

SPRING

1шт.

S113025

CARTRIDGE

VALVE relief, Includes: Refs. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

CARTRIDGE, component parts not serviced separately

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

S300790

FITTING

PLUG

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

S300791

SCREW

upper

1шт.

11

S300792

SCREW

lower

1шт.

Выбрано товаров: 13
