Запчасти Case 621C (08-061) - HYD.- RIDE CONTRL,MASTR & DIRECTNL VLVS TO LIFT TUBES, ALL N. A. LOADRS, EUR. Z BAR LOADRS ONLY (08) - HYDRAULICS

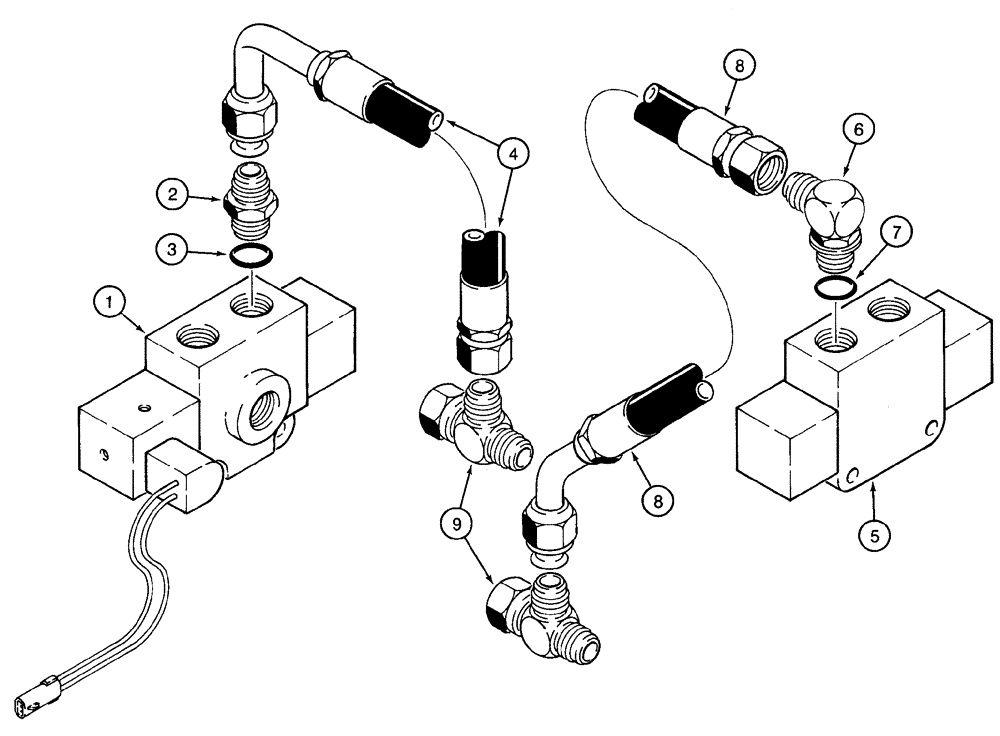

Схема запчастей Case 621C - (08-061) - HYD.- RIDE CONTRL,MASTR & DIRECTNL VLVS TO LIFT TUBES, ALL N. A. LOADRS, EUR. Z BAR LOADRS ONLY (08) - HYDRAULICS
8
8
1
5
3
4
2
7
9
6

Артикул

Название

Примечание

Количество

1

107866A1

VALVE

control, master directional, with electrical connector, See figure 8-237

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Incl. Ref 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

132977A1

HOSE ASSY.

20 in, (510 mm), to right hand rod end cylinder tube, See figure 8-29 for lift tubes used on models with ride control

1шт.

5

106488A1

VALVE

directional control,

2шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

131199A1

HOSE ASSY.

directional valve to right hand closed end cylinder tube, 20 in, (510 mm)

1шт.

9

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

2шт.

10

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

Выбрано товаров: 10
