Запчасти Case 621C (08-059) - HYD. - RIDE CONTROL, MASTER VALVE TO CAB RETURN MANIFOLD, ALL N.A. LOADERS, EUR. Z-BAR LOADERS ONLY (08) - HYDRAULICS

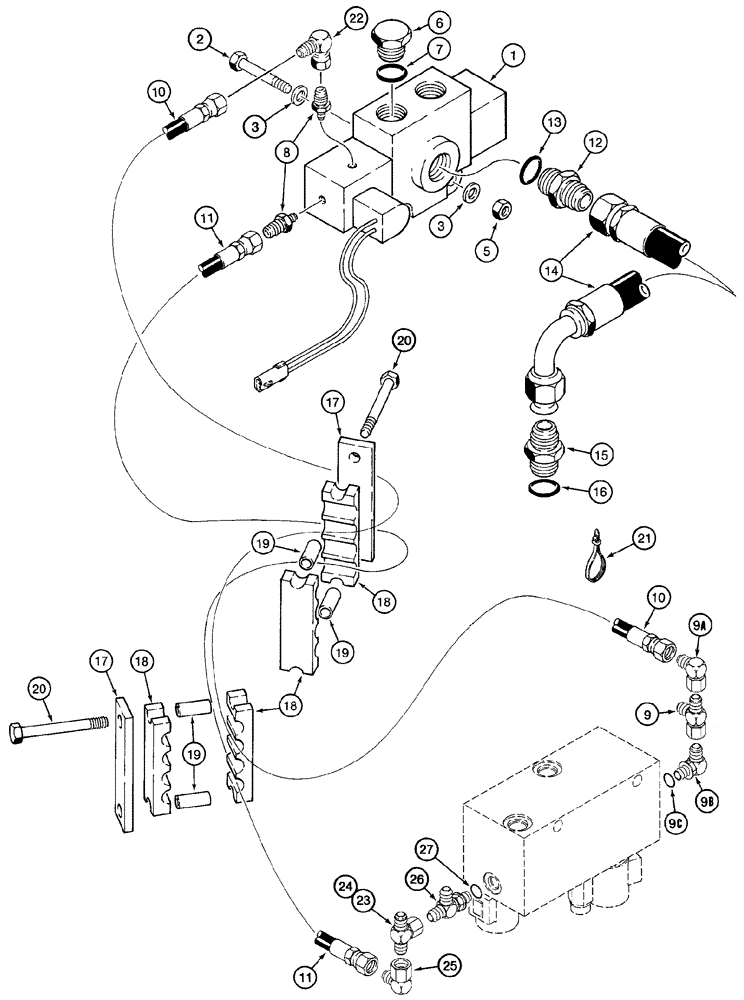

Схема запчастей Case 621C - (08-059) - HYD. - RIDE CONTROL, MASTER VALVE TO CAB RETURN MANIFOLD, ALL N.A. LOADERS, EUR. Z-BAR LOADERS ONLY (08) - HYDRAULICS
12
15
11
27
9c
19
11
3
9
18
6
16
7
17
18
1
5
25
21
9a
23
9b
19
2
20
20
3
17
26
18
22
14
10
19
10
13
24
8

Артикул

Название

Примечание

Количество

1

107866A1

VALVE

control, master directional, See figure 8-237

1шт.

2

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

3

496-41034

WASHER,.344" x 1" x .098", HDN

4шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter

2шт.

9

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Models with coupler and ride control, North America only

1шт.

9a

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

9b

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 9C

1шт.

9c

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

304514A1

HOSE ASSY.

master directional valve to combination valve, 97-1/4 in, (2470 mm)

1шт.

11

304514A1

HOSE ASSY.

ride control pressure to hydraulic controller return line, 97-1/4 in, (2470 mm)

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Incl. Ref 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

132978A1

HOSE ASSY.

master directional valve to loader control valve end cover, 21-3/4 in, (550 mm)

1шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Adapter, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

L124270

LARGE PLATE

PLATE, LARGE

2шт.

18

L124271

FIXING BRACKET

CLAMP

4шт.

19

L126936

SPACER

4шт.

20

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

Replaces 827-10120

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

22

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

23

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

Includes: Ref. 24

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

26

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 27

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 29
