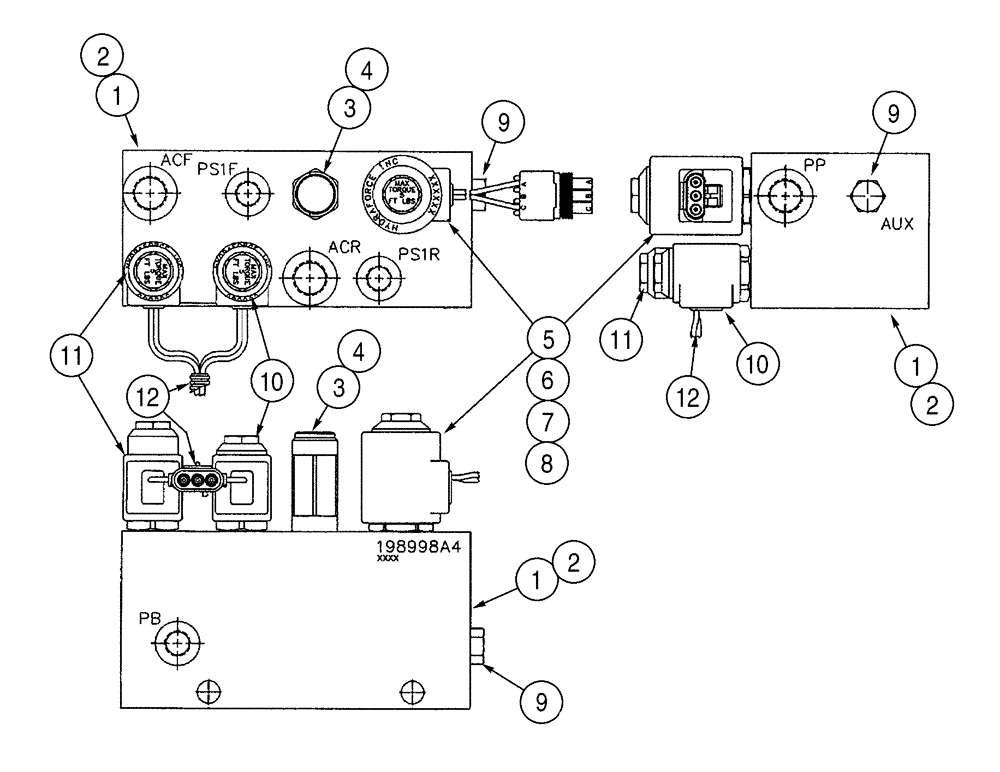

Запчасти Case 621C (08-058) - VALVE ASSY COMBINATION (08) - HYDRAULICS

1

198998A4

VALVE

pressure, combination, Consists of: Refs. 1-12, if used

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

3

294787A1

JET

ORIFICE

1шт.

4

120470A2

VALVE

relief, Includes: P/N 120469A1, component parts not serviced separately, for service of external seals, Order P/N 120469A1

1шт.

120469A1

SEAL KIT

SEAL, component parts not serviced separately

1шт.

5

329480A1

VALVE

solenoid, 2 way, component parts not serviced separately, Includes: P/N 329484A1, P/N 332377A1, P/N 332378A1

1шт.

329484A1

SEAL KIT

SEAL, component parts not serviced separately

1шт.

6

332377A1

O-RING

Outer

1шт.

7

332378A1

O-RING

center

1шт.

8

329482A1

COIL

with male connector

1шт.

9

353096A1

PLUG

1шт.

10

353091A1

SOLENOID

VALVE, 24V, Includes: P/N 329483A1

1шт.

329483A1

SEAL KIT

Component parts not serviced separately

1шт.

11

295941A1

SOLENOID

VALVE, 2 way, component parts not serviced separately, Includes: P/N 1542831C1

1шт.

1542831C1

SEAL KIT

Component parts not serviced separately

1шт.

12

353093A1

COIL

with female connector

1шт.
