Запчасти Case 621C (08-057) - VALVE ASSY COMBINATION (08) - HYDRAULICS

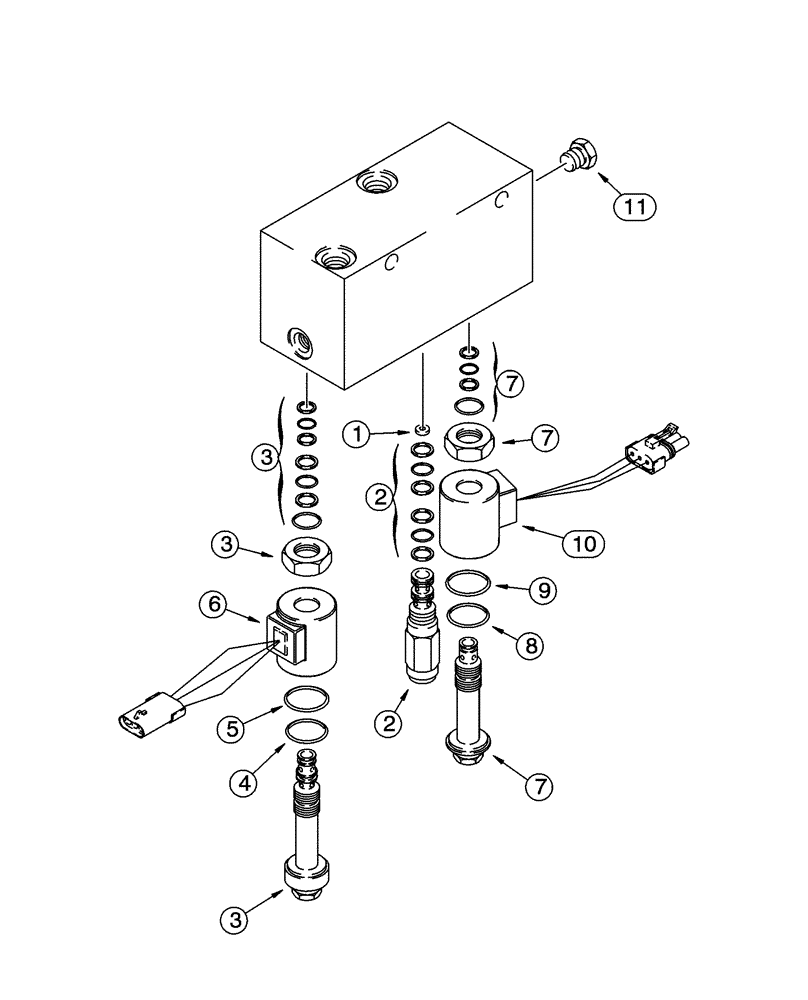

Схема запчастей Case 621C - (08-057) - VALVE ASSY COMBINATION (08) - HYDRAULICS
1
3
8
6
3
3
7
11
7
10
2
4
9
7
2
5

Артикул

Название

Примечание

Количество

198998A3

VALVE

pressure, combination, Consists of: Refs.1-12, if used

1шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

1

294787A1

JET

1шт.

2

120470A2

VALVE

Includes: P/N 120469A1, component parts not serviced separately, for service of external seals, Order: 120469A1

1шт.

120469A1

SEAL KIT

SEAL, component parts not serviced separately

1шт.

3

329479A1

VALVE

3 way, component parts not serviced separately, Includes: P/N 329483A1, P/N 332377A1, P/N 332378A1

1шт.

329483A1

SEAL KIT

Component parts not serviced separately

1шт.

4

332377A1

O-RING

Outer

1шт.

5

332378A1

O-RING

center

1шт.

6

329481A1

COIL ASSY.

with female connector

1шт.

7

329480A1

VALVE

2 way, component parts not serviced separately, Includes: P/N 329484A1, P/N 332377A1, P/N 332378A1

1шт.

329484A1

SEAL KIT

SEAL, component parts not serviced separately

1шт.

8

332377A1

O-RING

Outer

1шт.

9

332378A1

O-RING

center

1шт.

10

329482A1

COIL

with male connector

1шт.

11

336680A1

PLUG

1шт.

12

336791A1

VALVE

not illustrated, component parts not serviced separately, Includes: P/N 336792A1

1шт.

336792A1

SET OF PARTS

SEAL, component parts not serviced separately

1шт.

Выбрано товаров: 18
