Запчасти Case 621C (08-056) - VALVE ASSY - REMOTE CONTROL, AUXILIARY, SINGLE LEVER W/TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS

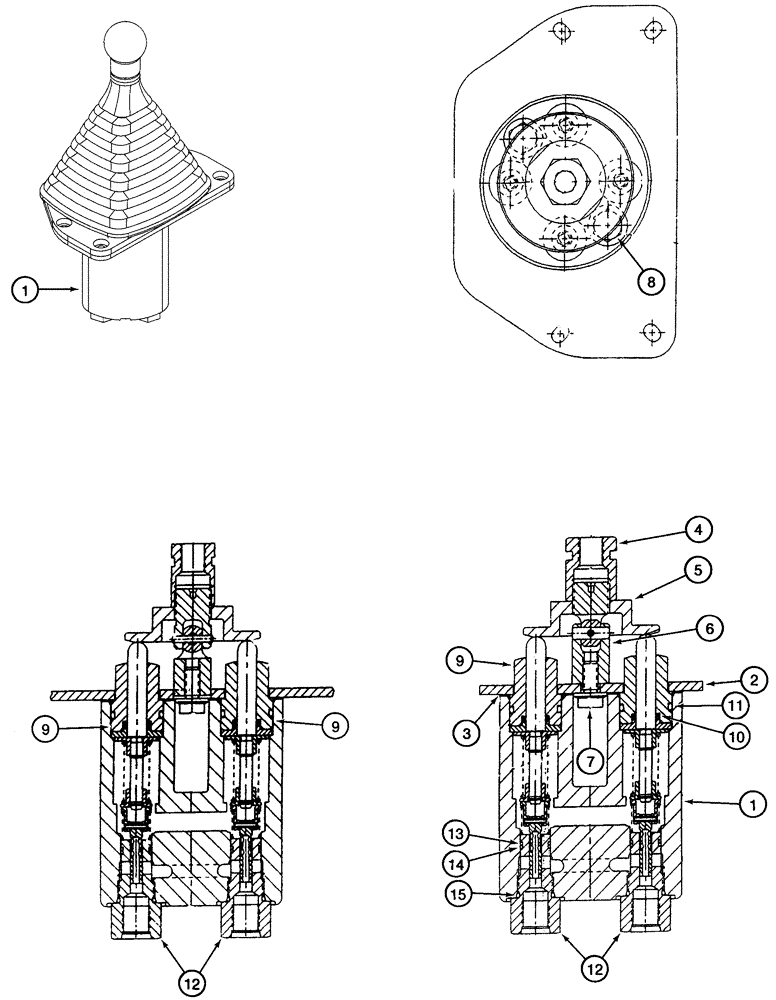

Схема запчастей Case 621C - (08-056) - VALVE ASSY - REMOTE CONTROL, AUXILIARY, SINGLE LEVER W/TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS
14
1
12
2
4
11
9
10
5
7
8
15
12
13
9
9
6
3
1

Артикул

Название

Примечание

Количество

240921A1

VALVE

remote control, two spool, Consists of: Refs. 1-15

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

323775A1

LARGE PLATE

PLATE, LARGE

1шт.

3

323779A1

GASKET,0.46mm Thk

1шт.

4

323771A1

SPECIAL NUT

1шт.

5

323774A1

PIVOT PLATE

1шт.

6

323773A1

COUPLING JOINT

1шт.

7

323787A1

SERRATED SCREW

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

9

323768A1

PLUNGER

cartridge, component parts not serviced separately, for service of external o-ring and spool seal, Order: P/N 323915A1 Kit, Includes: P/N 323915A1, 10, 11

4шт.

323915A1

SET OF PARTS

KIT seal, Includes: Refs. 10 and 11

1шт.

10

323922A1

SEAL,8.84mm ID x 15.24mm OD x 2.92mm Thk

spool

1шт.

11

238-8118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

1шт.

12

323766A1

VALVE

Component parts not serviced separately, for service of external seals, Order: P/N 323913A1 Kit, Includes: P/N 323913A1, 13-15

4шт.

323913A1

SEAL KIT

KIT seal, Includes: Refs. 13-15

1шт.

13

323921A1

RING

1шт.

14

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

15

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

Выбрано товаров: 18
