(08-055) - VALVE ASSY - REMOTE CONTROL, AUXILIARY, SINGLE LEVER W/TWO SPOOL VALVE, NORTH AMERICA ONLY

Запчасти Case 621C (08-055) - VALVE ASSY - REMOTE CONTROL, AUXILIARY, SINGLE LEVER W/TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS

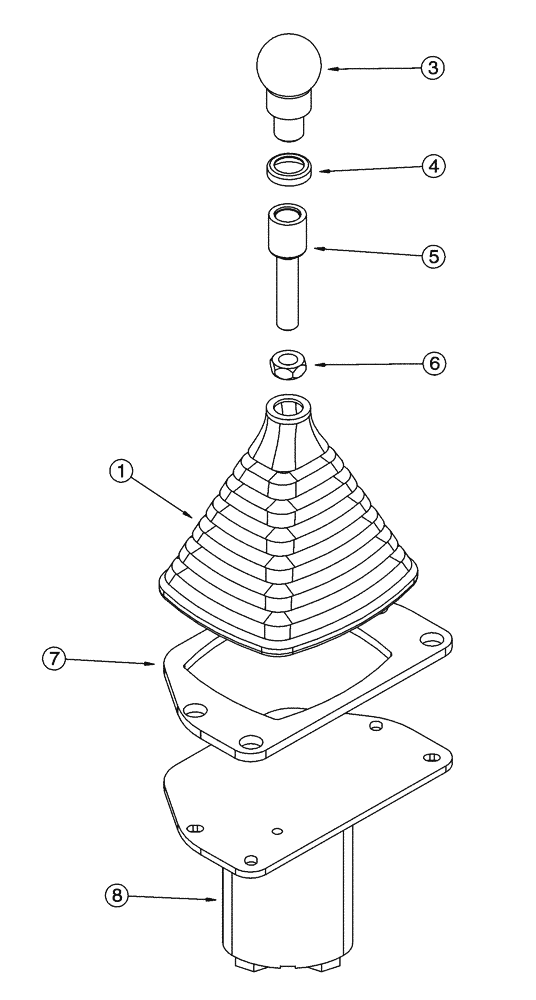

Схема запчастей Case 621C - (08-055) - VALVE ASSY - REMOTE CONTROL, AUXILIARY, SINGLE LEVER W/TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS
8
1
3
7
5
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

299238A1

VALVE

control, single lever remote, auxiliary, Consists of: Refs. 1-8

1шт.

1

275860A1

BOOT

1шт.

3

291477A1

BALL KNOB

1шт.

4

291474A1

WASHER

WASHER

1шт.

5

299184A1

PLUNGER

LEVER

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

7

316777A1

GASKET

1шт.

8

240921A1

VALVE

remote control, two spool, See figure 8-056

1шт.

Выбрано товаров: 8
