Запчасти Case 621C (08-054) - HYDRAULICS - COUPLER, NORTH AMERICA ONLY, XT LOADER (08) - HYDRAULICS

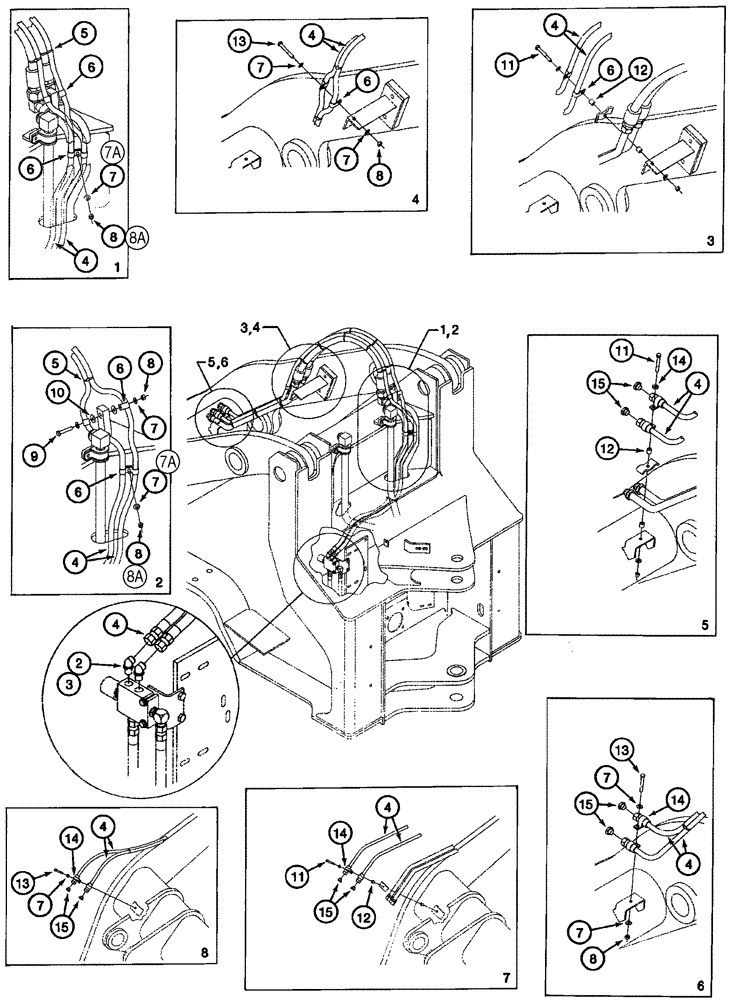

Схема запчастей Case 621C - (08-054) - HYDRAULICS - COUPLER, NORTH AMERICA ONLY, XT LOADER (08) - HYDRAULICS
3
12
4
7
8a
8
2
14
15
8
7
4
12
4
8
6
1
4
8
7a
15
7a
7
6
13
6
11
4
7
15
13
7
13
3
6
4
7
14
11
8
6
2
5
2
8
6
14
11
8a
3
12
7
1
4
7
4
5
4
5
14
10
15
5
9
4
6
4
7
6

Артикул

Название

Примечание

Количество

1

305266A1

COUPLING

ACS Pro-Series 2000

1шт.

1a

305269A1

JRB series

1шт.

1b

305265A1

ACS Pro-Series 2000, Z-bar & XR loaders

1шт.

1c

305268A1

JRB Series, comlete, with hoses from locking cylinders to Case Corp. plumbing on lift arms, North America only, see note, not illustrated, Z-bar & XR loaders

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 3, Z-bar & XR loaders

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Z-bar & XR loaders

1шт.

4

301862A1

HOSE ASSY.

133-7/8 in, (3400 mm), Z-bar & XR loaders

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Z-bar & XR loaders

1шт.

6

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

Z-bar & XR loaders

6шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16"), Z-bar & XR loaders

5-6шт.

7a

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

If used, Z-bar & XR loaders

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

Z-bar & XR loaders

2-3шт.

8a

832-10410

NUT,M10 x 1.5, Cl 8

If used, Z-bar & XR loaders

1шт.

9

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

Z-bar & XR loader

1шт.

10

496-41041

WASHER,13/32" x 1 1/8" x .134"

Z-bar & XR loaders

2шт.

11

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

Existing hardware supplied with auxiliary hydraulics, Z-bar & XR loaders

1шт.

12

D76209

SPACER

Z-bar & XR loaders

2шт.

13

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

Z-bar & XR loaders

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Z-bar & XR loaders

2шт.

15

218-772

PLUG,7/16"-20, 37 Degree

Z-bar & XR loaders

2шт.

Выбрано товаров: 20
