Запчасти Case 621C (02-011) - FRONT GEAR COVER NORTH (AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

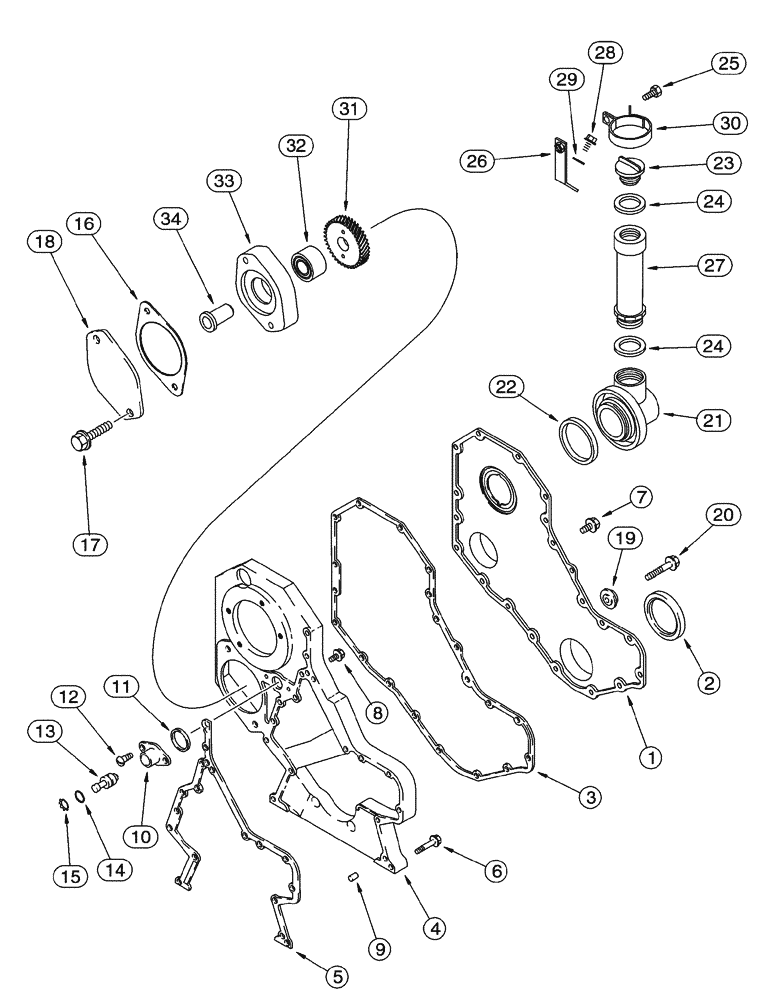

Схема запчастей Case 621C - (02-011) - FRONT GEAR COVER NORTH (AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
9
6
14
25
2
7
5
29
4
8
3
24
21
15
34
11
30
17
27
16
23
20
13
1
33
10
19
24
12
28
26
31
18
32
22

Артикул

Название

Примечание

Количество

1

J918675

COVER

used with P/N J932120

1шт.

1

J935581

COVER

used with P/N J936257

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, Order: P/N's A77889 and A77890, See figure 2-73

1шт.

3

J918673

GASKET,1.02mm Thk

If used

1шт.

3a

J823494

SEALANT

3 oz., If used, not illustrated

1шт.

4

J932120

HOUSING

no longer available, Order: P/N J936257

1шт.

4

J936257

HOUSING

Replaces: P/N J932120

1шт.

5

J931351

GASKET

housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

flange, M8 x 16

8шт.

8

J924962

FLANGE BOLT

flange, M8 x 16

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J919683

HOUSING

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

1шт.

14

J913994

O-RING

1шт.

15

J904849

SNAP RING,0.875", Int, #87

1шт.

16

J929751

GASKET

plate

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J914868

COVER

PLATE

1шт.

19

J912772

RETAINER

1шт.

20

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

21

J921644

ADAPTER

CONNECTOR

1шт.

22

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

23

J901895

CAP

filler

1шт.

24

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

2шт.

25

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

26

J914497

SUPPORT

1шт.

27

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

1шт.

28

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

30

J914940

CLAMP

1шт.

31

J931338

GEAR

1шт.

32

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

1шт.

33

J924881

ADAPTER

1шт.

34

J923242

SHAFT

1шт.

Выбрано товаров: 37
