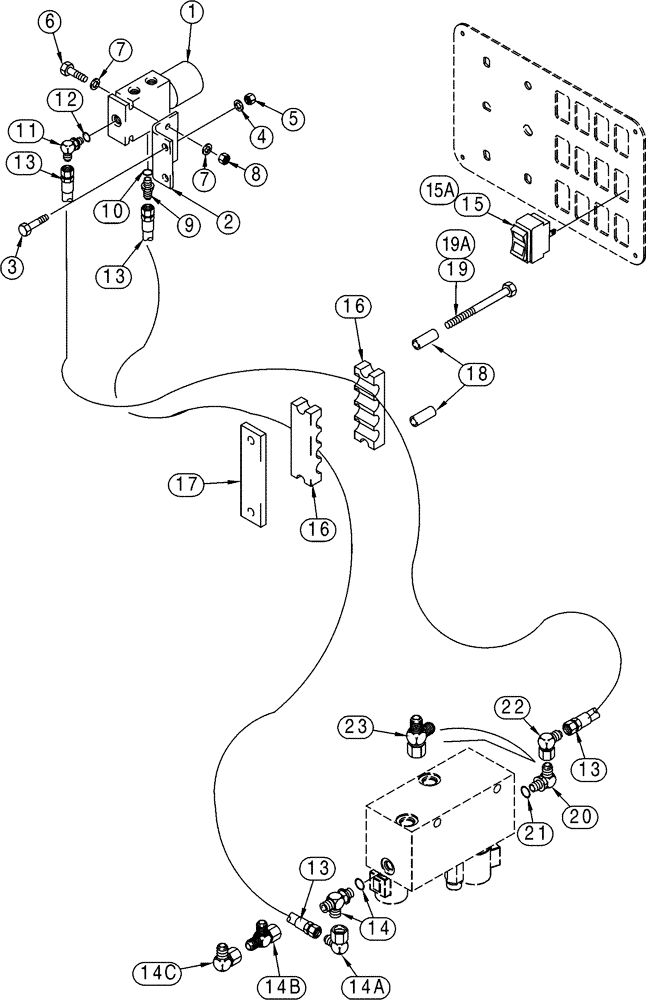

Запчасти Case 621C (08-052) - HYDRAULICS - COUPLER LOCKING, COUPLER LOCKING, NORTH AMERICA ONLY (08) - HYDRAULICS

1

118857A1

VALVE

solenoid, coupler locking, See figure 8-135

1шт.

2

115784A1

BRACKET

1шт.

3

827-6030

BOLT,Hex, M6 x 30mm, Cl 10.9

No longer used, Order: P/N 627-10035

2шт.

3

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Replaces P/N 827-6030

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 10

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

304514A1

HOSE ASSY.

97-1/4 in, (2470 mm)

2шт.

14

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: P/N 237-6006

1шт.

14a

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

14b

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

14c

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

15

234208A1

SWITCH

rocker, coupler, no longer available, Order: P/N 364444A1

1шт.

15a

364444A1

SWITCH

rocker, coupler, Replaces: P/N 234208A1

1шт.

16

L124271

FIXING BRACKET

CLAMP

4шт.

17

L124270

LARGE PLATE

PLATE, LARGE

2шт.

18

L126936

SPACER

4шт.

19

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

No longer used, Order 827-10130

4шт.

19a

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

Replaces 827-10120

4шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: 21

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

23

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Models with coupler and ride control, North America only

1шт.
