Запчасти Case 621C (08-052[A]) - VALVE ASSY - REMOTE CONTROL, DUAL LEVER, DUAL LEVER W/THREE SPOOL VALVE, NORTH AMERICA AND EUROPE (08) - HYDRAULICS

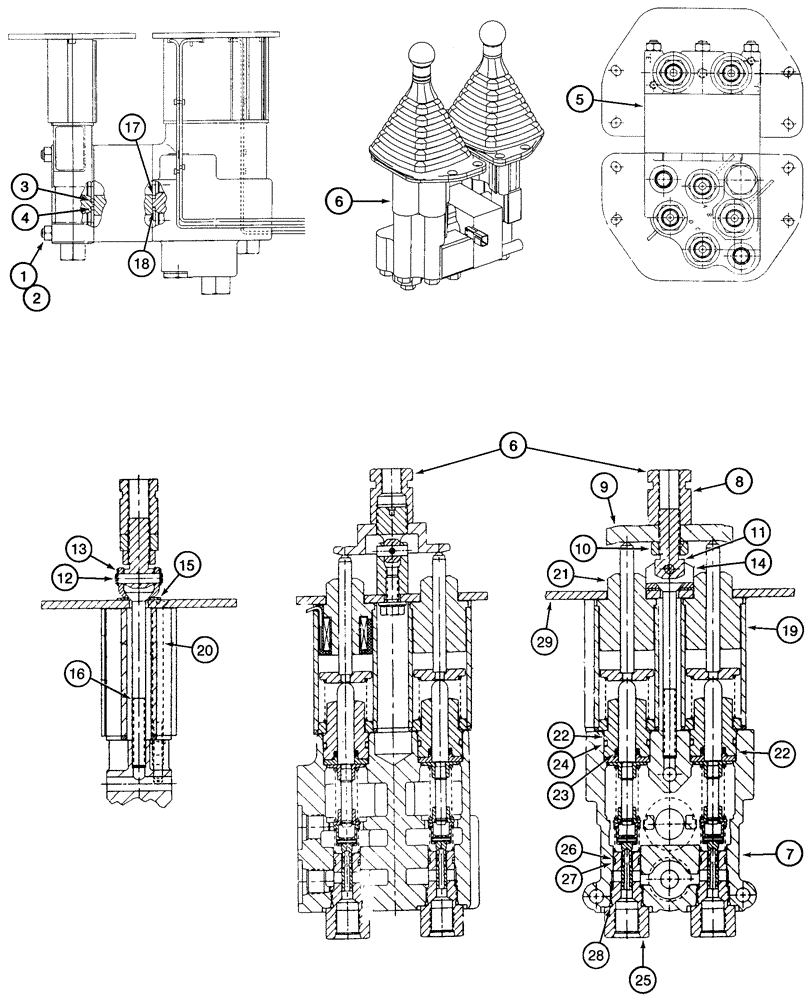

Схема запчастей Case 621C - (08-052[A]) - VALVE ASSY - REMOTE CONTROL, DUAL LEVER, DUAL LEVER W/THREE SPOOL VALVE, NORTH AMERICA AND EUROPE (08) - HYDRAULICS
23
12
2
27
20
28
6
19
4
3
16
22
6
25
29
13
24
1
17
11
5
8
10
7
21
14
15
18
9
22
26

Артикул

Название

Примечание

Количество

291088A1

VALVE

remote control, three spool, Consists of: Refs. 1-29

1шт.

1

322399A1

ROD

tie

3шт.

2

329-105

NUT,5/16"-18, G8

6шт.

3

238-5213

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

1шт.

4

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

3шт.

5

322398A1

VALVE BLOCK

SPACER

1шт.

6

275924A1

VALVE

control, two spool, See figure 8-173, for component parts

1шт.

318447A1

SET OF PARTS

KIT auxiliary section, ports E and F, Consists of: 7-29

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

324107A1

SPECIAL NUT

special

1шт.

9

324106A1

PIVOT PLATE

1шт.

10

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

11

324103A1

BOLT

special

1шт.

12

324108A1

PIVOT PIN

pivot

1шт.

13

100-3321

SNAP RING,#X21, .185" Dia, E-Type

2шт.

14

324104A1

SUPPORT

BRACKET

1шт.

15

324109A1

SHIM

1шт.

16

324105A1

HEX SOC SCREW

1шт.

17

238-5213

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

1шт.

18

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

1шт.

19

324493A1

MAGNET

ASSY., component parts not serviced separately

1шт.

20

324110A1

SCREW

2шт.

21

324102A1

PLUNGER

ASSY., component parts not serviced separately

2шт.

22

323768A1

PLUNGER

component parts not serviced separately, for service of external o-ring and spool seal, Order: P/N 323915A1 Kit, Includes: P/N 323915A1, 23, 24

2шт.

323915A1

SET OF PARTS

KIT seal, Includes: Refs. 23 and 24

1шт.

23

323922A1

SEAL,8.84mm ID x 15.24mm OD x 2.92mm Thk

spool

1шт.

24

238-8118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

1шт.

25

323766A1

VALVE

Component parts not serviced separately, for service of external seals, Order: P/N 323913A1 Kit, Includes: P/N 323913A1, 26-28

2шт.

323913A1

SEAL KIT

SEAL, Includes: Refs. 26-28

1шт.

26

323921A1

RING

backup

1шт.

27

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

28

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

29

324312A1

LARGE PLATE

PLATE, LARGE

1шт.

Выбрано товаров: 33
