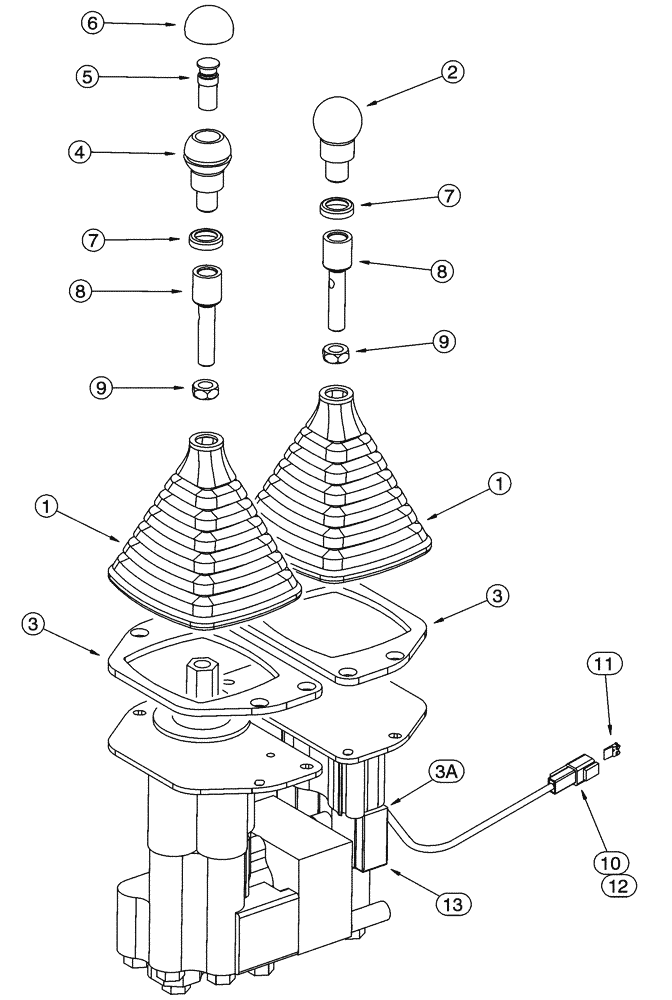

Запчасти Case 621C (08-051) - VALVE ASSY - REMOTE CONTROL, DUAL LEVER, DUAL LEVER W/THREE SPOOL VALVE, NORTH AMERICA AND EUROPE (08) - HYDRAULICS

291087A1

VALVE

dual lever remote, Consists of: Refs. 1-13

1шт.

1

275860A1

BOOT

2шт.

2

291477A1

BALL KNOB

1шт.

3

316777A1

GASKET

2шт.

3a

330134A1

HEATER TUBE,4.75 mm ID

TUBE, heat shrink, kickdown switch wires

1шт.

4

291478A1

BALL KNOB

1шт.

5

291475A1

IGNITION SWITCH

push button, kickdown

1шт.

6

291476A1

BOOT

switch

1шт.

7

291474A1

WASHER

WASHER

2шт.

8

299184A1

PLUNGER

LEVER

2шт.

9

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

10

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

11

225318C1

ELEC CONNECTOR,2 Pin

locking

1шт.

12

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

PIN

2шт.

13

291088A1

VALVE

remote control, three spool, See figure 8-197

1шт.
