Запчасти Case 621C (08-049) - VALVE ASSY - REMOTE CONTROL, DUAL LEVER, DUAL LEVER W/TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS

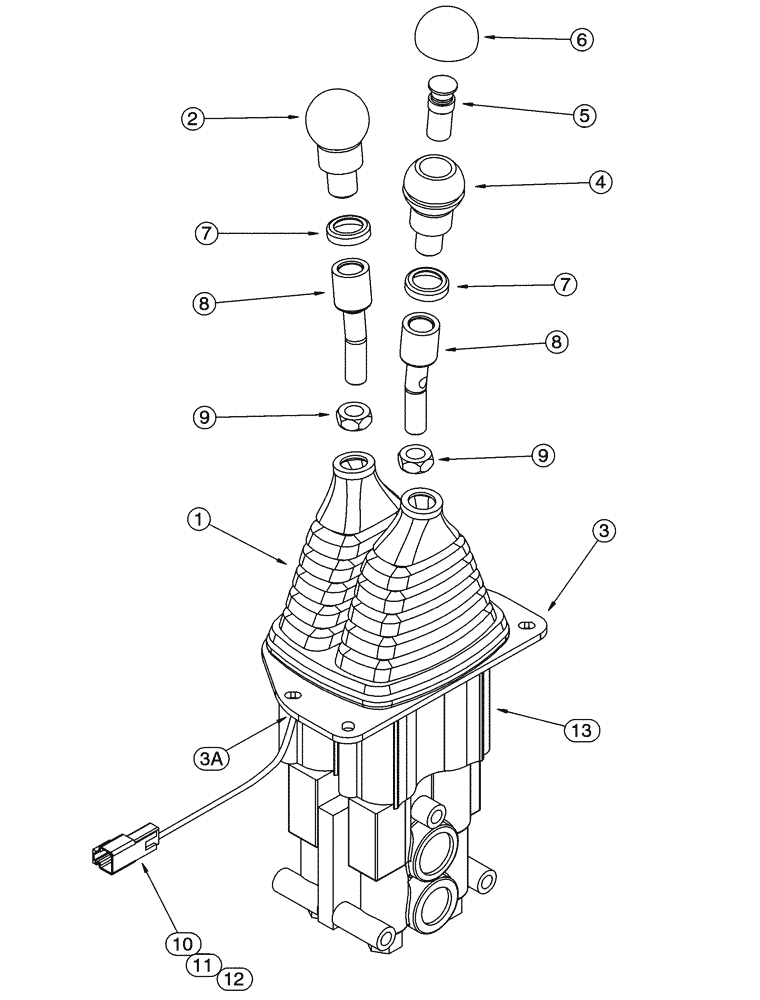

Схема запчастей Case 621C - (08-049) - VALVE ASSY - REMOTE CONTROL, DUAL LEVER, DUAL LEVER W/TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS
9
9
3a
8
7
6
10
8
4
3
11
5
2
1
13
7
12

Артикул

Название

Примечание

Количество

292086A1

VALVE

control, dual lever remote, Consists of: Refs. 1-13

1шт.

1

275861A1

BOOT

1шт.

2

291477A1

BALL KNOB

1шт.

3

316777A1

GASKET

1шт.

3a

330136A1

HEATER TUBE,4.75 mm ID

TUBE heat shrink, kickdown switch wires

1шт.

4

291478A1

BALL KNOB

1шт.

5

291475A1

IGNITION SWITCH

push button, kickdown

1шт.

6

291476A1

BOOT

switch

1шт.

7

291474A1

WASHER

WASHER

2шт.

8

256071A1

PLUNGER

lever

2шт.

9

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

10

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

11

225318C1

ELEC CONNECTOR,2 Pin

locking

1шт.

12

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

PIN

2шт.

13

291946A1

VALVE

remote control, two spool, See figure 8-185

1шт.

Выбрано товаров: 15
