Запчасти Case 621C (08-048[A]) - VALVE ASSY REMOTE CONTROL, SINGLE LEVER, SINGLE LEVER W/ TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS

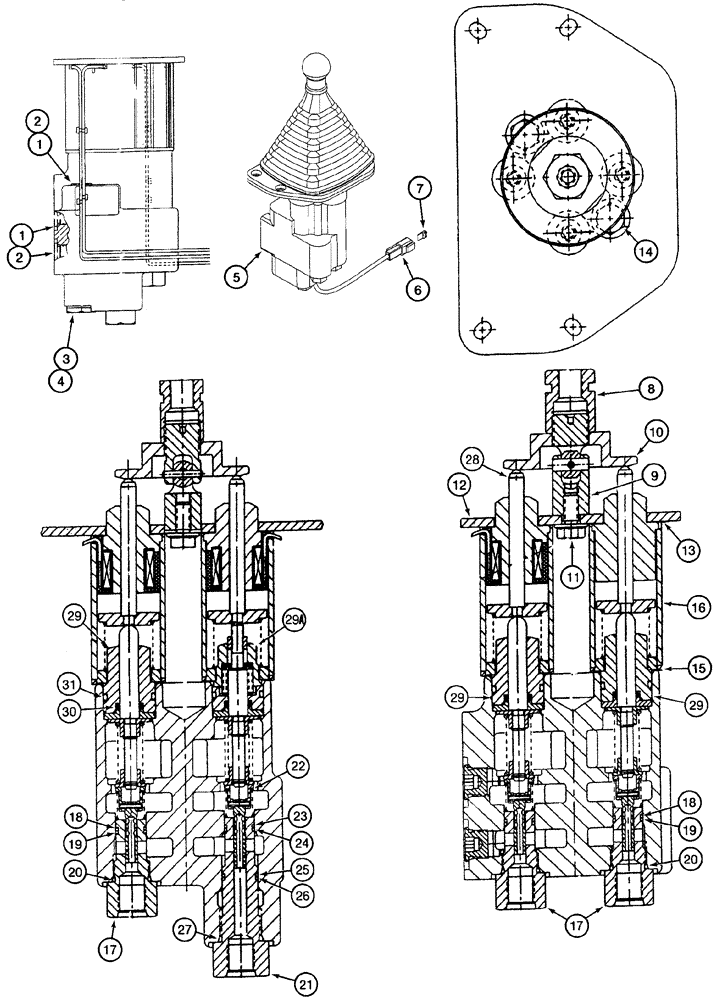

Схема запчастей Case 621C - (08-048[A]) - VALVE ASSY REMOTE CONTROL, SINGLE LEVER, SINGLE LEVER W/ TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS
3
5
19
11
24
22
29
25
2
20
31
1
27
29
21
15
19
6
7
17
28
18
26
12
10
18
20
2
29a
8
30
4
9
16
17
1
13
14
23
29

Артикул

Название

Примечание

Количество

275924A1

VALVE

remote control, two spool, Consists of: Refs. 1-31

1шт.

1

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 2

3шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

6

323777A1

CONNECTOR, ELEC

CONNECTOR

1шт.

7

323776A1

WEDGE

1шт.

8

323771A1

SPECIAL NUT

NUT special

1шт.

9

323773A1

COUPLING JOINT

PIVOT

1шт.

10

323774A1

PIVOT PLATE

1шт.

11

323787A1

SERRATED SCREW

1шт.

12

323775A1

LARGE PLATE

PLATE, LARGE

1шт.

13

323779A1

GASKET,0.46mm Thk

SEAL upper

1шт.

14

323788A1

SCREW

2шт.

15

323781A1

GASKET,4.78mm Thk

SEAL lower

1шт.

16

323778A1

MAGNET

ASSY., component parts not serviced separately

1шт.

17

323766A1

VALVE

Cartridge, component parts not serviced separately, for service of external seals, Order: P/N 323913A1 Kit, Includes: Refs. 18-20

3шт.

323913A1

SEAL KIT

KIT seal, Includes: Refs. 18-20

1шт.

18

323921A1

RING

backup

1шт.

19

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

20

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

21

323767A1

VALVE

component parts not serviced separately, for service of external seals, Order: P/N 323914A1 Kit, Includes: Refs. 22-27

1шт.

323914A1

SEAL KIT

KIT seal, Includes: Refs. 22-27

1шт.

22

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

1шт.

23

323921A1

RING

backup

1шт.

24

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.

25

238-8016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 8, 90 Duro

1шт.

26

323920A1

RING

backup

1шт.

27

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

28

323770A1

PLUNGER

component parts not serviced separately

4шт.

29

323768A1

PLUNGER

two used in bucket dump and rollback section, one used in lift raise section, cartridge, component Parts not serviced separately, for service of external o-ring and spool seal, Order: 323915A1 Kit, Includes: 323915A1, 30, 31

3шт.

29a

323769A1

PLUNGER

one used in lift float section, cartridge, component parts not serviced separately, for service of external o-ring and spool seal, Order: 323915A1 Kit, Includes: 323915A1, 30, 31

1шт.

323915A1

SET OF PARTS

KIT seal, Includes: Refs. 30 and 31

1шт.

30

323922A1

SEAL,8.84mm ID x 15.24mm OD x 2.92mm Thk

spool

1шт.

31

238-8118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

1шт.

Выбрано товаров: 36
