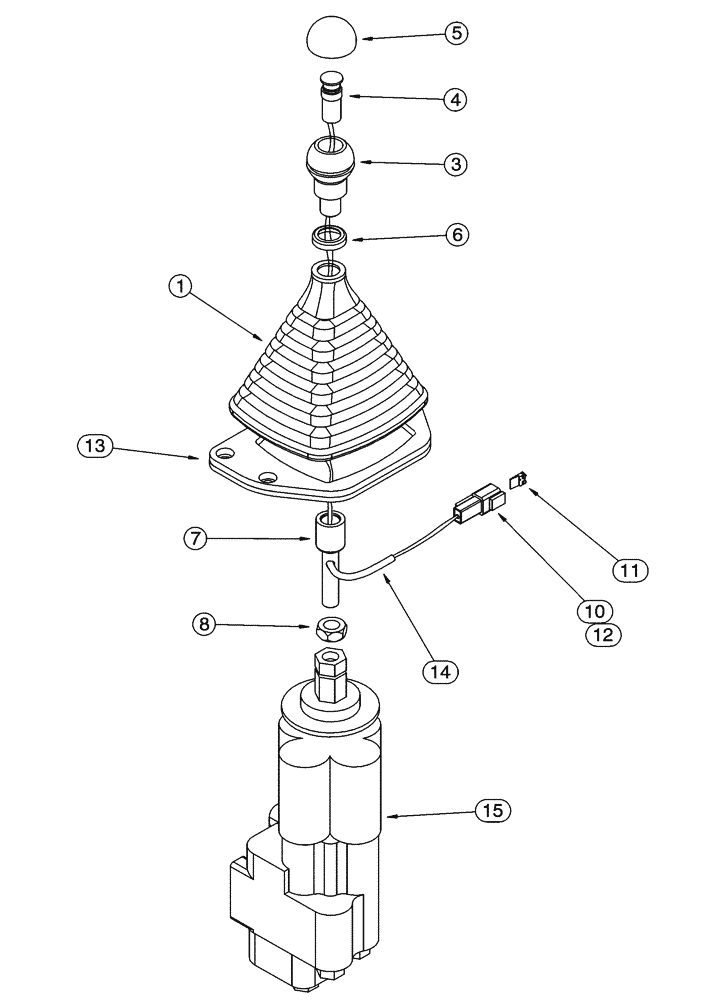

Запчасти Case 621C (08-047) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER, SINGLE LEVER W/TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS

292085A1

VALVE

control, single lever remote, Consists of: Refs. 1-15

1шт.

1

275860A1

BOOT

1шт.

3

291478A1

BALL KNOB

1шт.

4

291475A1

IGNITION SWITCH

push button, kickdown

1шт.

5

291476A1

BOOT

switch

1шт.

6

291474A1

WASHER

WASHER

1шт.

7

299184A1

PLUNGER

LEVER

1шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

10

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

11

225318C1

ELEC CONNECTOR,2 Pin

1шт.

12

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

PIN

2шт.

13

316777A1

GASKET

1шт.

14

330134A1

HEATER TUBE,4.75 mm ID

TUBE, heat shrink, kickdown switch wires

1шт.

15

275924A1

VALVE

remote control, two spool, See figure 8-173

1шт.
