Запчасти Case 621C (08-046) - HYDRAULICS - AUXILIARY BUCKET COUPLINGS, THREE SPOOL VALVE TO AUXILIARY BUCKET COUPLINGS (08) - HYDRAULICS

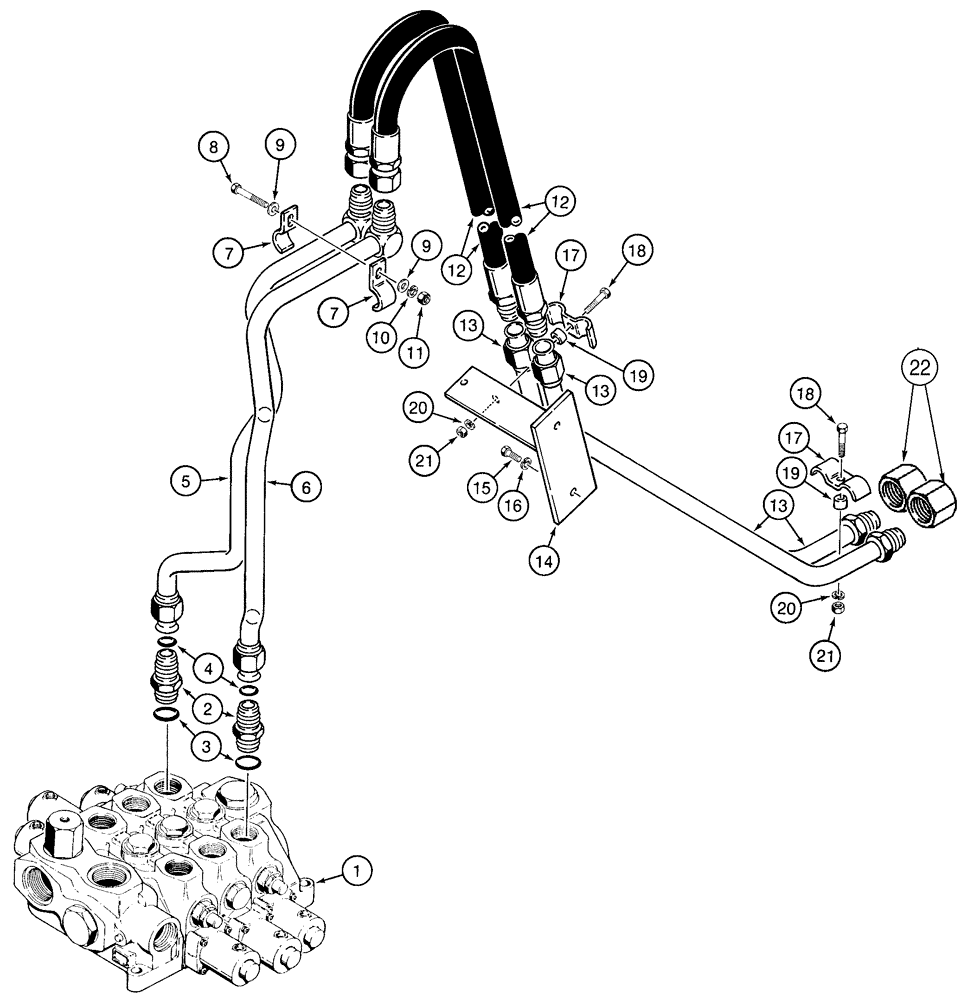

Схема запчастей Case 621C - (08-046) - HYDRAULICS - AUXILIARY BUCKET COUPLINGS, THREE SPOOL VALVE TO AUXILIARY BUCKET COUPLINGS (08) - HYDRAULICS
13
1
9
14
17
19
2
13
21
20
10
19
4
6
15
7
18
7
22
3
12
21
9
12
17
8
13
18
5
11
16
20

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE control, loader control, See figure 8-17

1шт.

2

L124291

FITTING

Includes: Refs. 3 and 4

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

4

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Face Seal End

1шт.

5

L126182

TUBE,25.4 mm OD

1шт.

6

L126180

TUBE,25.4 mm OD x 802, 248 mm L

1шт.

7

L32065

CLAMP

2шт.

8

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

1шт.

9

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

43-3/8 in, (1100 mm)

2шт.

13

346333A1

TUBE,25.4 mm OD, 683, 422 mm Length

at loader lift frame

2шт.

14

346304A1

SUPPORT

BRACKET

1шт.

15

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

R15257

CLAMP

2шт.

18

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

2шт.

19

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

Выбрано товаров: 22
