Запчасти Case 621C (08-046[A]) - HYDRAULICS - LOADER CONTROL, REMOTE, SUPPLY AND RETURN TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

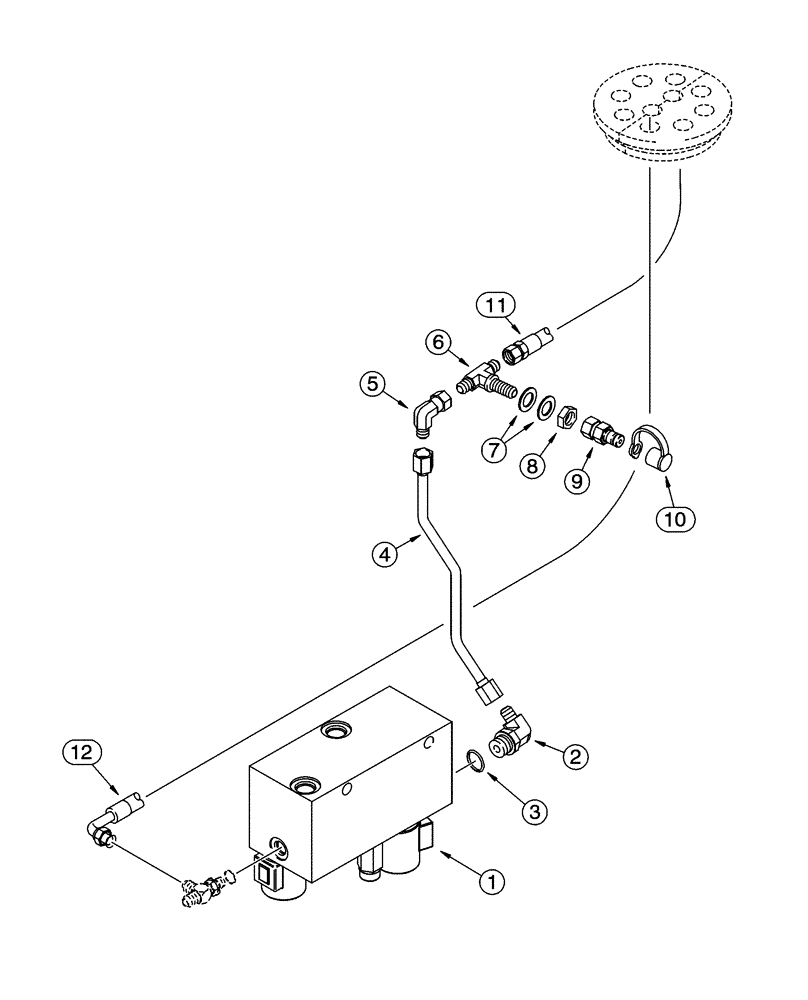

Схема запчастей Case 621C - (08-046[A]) - HYDRAULICS - LOADER CONTROL, REMOTE, SUPPLY AND RETURN TO HYDRAULIC RESERVOIR (08) - HYDRAULICS
11
8
6
9
3
1
2
10
7
4
12
5

Артикул

Название

Примечание

Количество

1

198998A3

VALVE

combination valve, See figure 8-221, if used

1шт.

1a

198998A4

VALVE

combination valve, See figure 8-223B, if used, not illustrated

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

242973A1

TUBE,9.525 mm OD, 293, 43 mm Length

supply

1шт.

5

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

6

218-804

TEE,9/16"-18, 37 Degree, Blkhd

1шт.

7

495-81244

WASHER,0.59" ID x 1" OD x 0.06" Thk

17/32 x 1-1/16 x 3/32

2шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

9

101792A1

COUPLING

diagnostic

1шт.

10

H434163

DUST CAP

1шт.

11

293990A1

HOSE ASSY.

supply, 39-3/8 in, (1000 mm)

1шт.

12

293988A1

HOSE ASSY.

return, 55-1/8 in, (1400 mm), attaches to P/N 218-5243 tee at combination valve, See figure 7-13

1шт.

Выбрано товаров: 13
