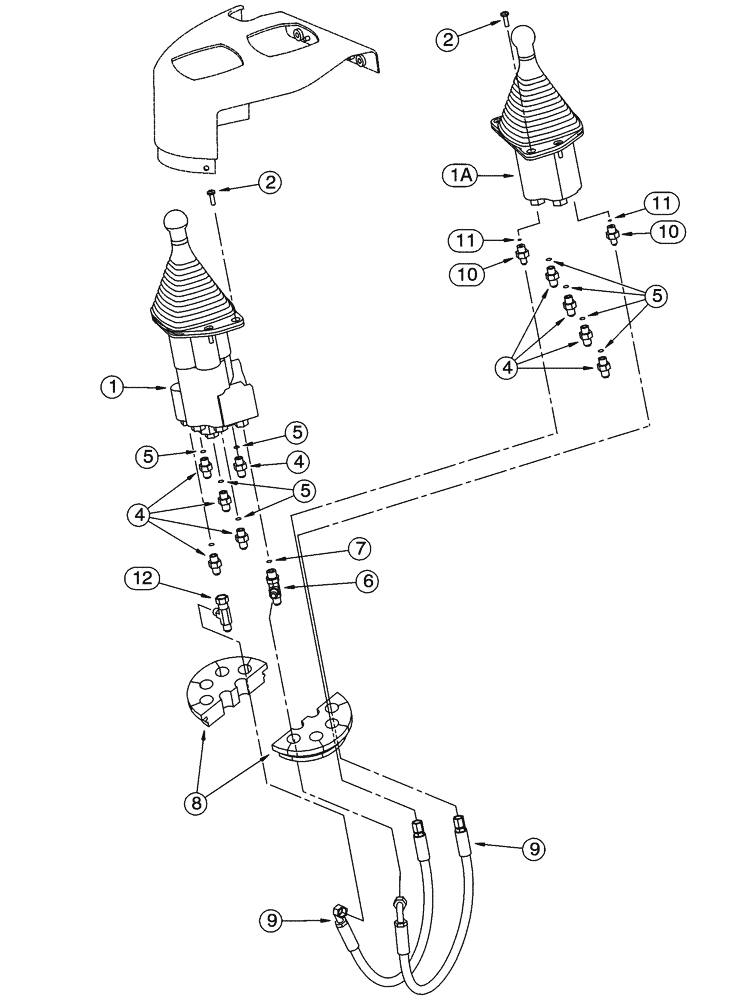

Запчасти Case 621C (08-044) - HYDRAULICS - LOADER CONTROL, REMOTE, DUAL LEVER W/FOUR SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS

1

292085A1

VALVE

single lever remote, two spool, See figure 8-169

1шт.

1a

299238A1

VALVE

auxiliary, single lever remote, two spool, See figure 8-215

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

8шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 5

9шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 7

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

232388A1

GROMMET

2шт.

9

300016A1

HOSE ASSY.

19-1/16 in, (483 mm)

2шт.

10

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Adapter, Incl. Ref. 11

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.
