Запчасти Case 621C (08-043) - HYDRAULICS - LOADER CONTROL, REMOTE, HOSE GROMMET TO THREE SPOOL VALVE, NORTH AMERICA ND EUROPE (08) - HYDRAULICS

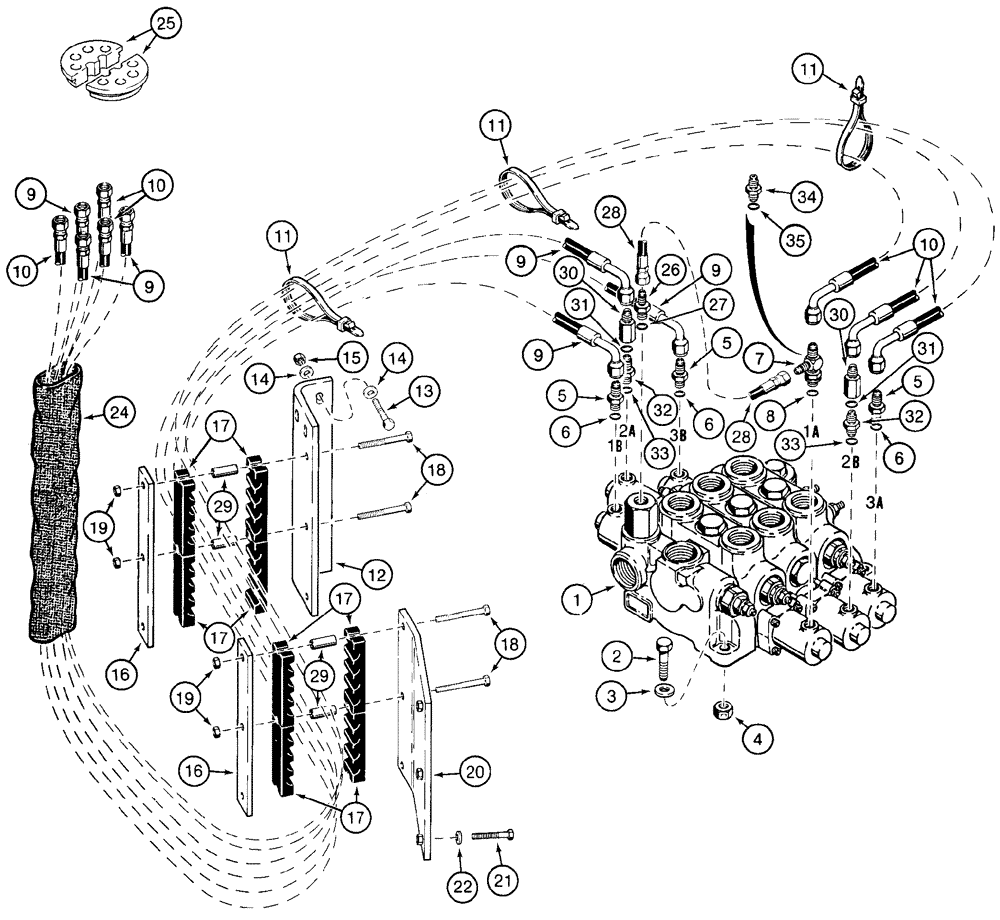

Схема запчастей Case 621C - (08-043) - HYDRAULICS - LOADER CONTROL, REMOTE, HOSE GROMMET TO THREE SPOOL VALVE, NORTH AMERICA ND EUROPE (08) - HYDRAULICS
12
18
6
17
27
13
28
29
25
16
28
17
14
1
16
4
6
17
11
32
11
35
21
22
31
18
11
9
10
24
8
9
14
5
29
19
10
10
20
31
30
15
3
26
30
33
19
9
2
33
7
9
34
17
6
32
5
9
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE, control, See figures 8-13, 8-17

1шт.

2

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

3

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

3шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

At port(s) 1B, 3A, 3B, Incl. Refs. 6

3шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

L124527

TEE

at port(s) 1A, Includes: Ref. 8, Z-Bar or XR Loader

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

292956A1

HOSE ASSY.

hose grommet to ports 1B, 2A and 3B, 105-5/8 in, (2680 mm)

3шт.

10

292957A1

HOSE ASSY.

hose grommet to ports 1A, 2B and 3A, 144-1/2 in, (3670 mm), hose grommet to ports 1A, 2B and 3A

3шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

12

114654A1

BRACKET

bolts to front chassis

1шт.

13

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

6шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

16

L127357

LARGE PLATE

PLATE, LARGE

2шт.

17

L124271

FIXING BRACKET

CLAMP

8шт.

18

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

6шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

20

294158A1

SUPPORT

bolts to rear frame

1шт.

21

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

22

892-11010

LOCK WASHER,M10

3шт.

24

S120426

TUBE

1шт.

25

232388A1

GROMMET

hose separator

2шт.

26

L129691

FITTING

ADAPTER, Includes: Ref. 27, Z-Bar or XR Loader

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

L128977

TUBE ASSY.

inlet and outlet section to tee at port 1A, Z-Bar or XR loader, 20-7/8 in, (510 mm)

1шт.

29

L126936

SPACER

6шт.

L110143

VALVE

check, Includes: Refs. 30-33, At port(s) 2A, 2B

2шт.

30

NSS

NOT SOLD SEPARAT

BODY

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 33

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adapter, Or, Includes: Ref. 35, At port(s) 1A, XT loader

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 35
