Запчасти Case 621C (08-041) - HYDRAULICS - LOADER CONTROL, REMOTE, DUAL LEVER W/THREE SPOOL VALVE, NORTH AMERICA AND EUROPE (08) - HYDRAULICS

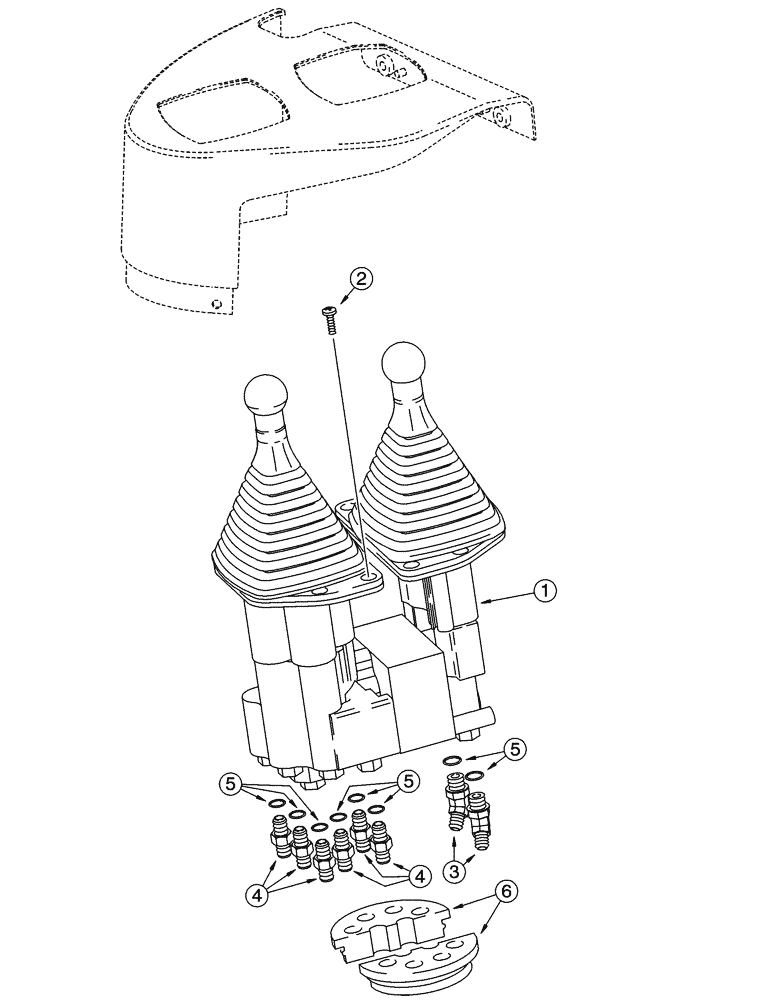

Схема запчастей Case 621C - (08-041) - HYDRAULICS - LOADER CONTROL, REMOTE, DUAL LEVER W/THREE SPOOL VALVE, NORTH AMERICA AND EUROPE (08) - HYDRAULICS
5
5
4
1
4
5
2
6
3

Артикул

Название

Примечание

Количество

1

291087A1

VALVE

control, dual lever remote, See figure 08-051

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 5

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 5

6шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

232388A1

GROMMET

2шт.

Выбрано товаров: 6
