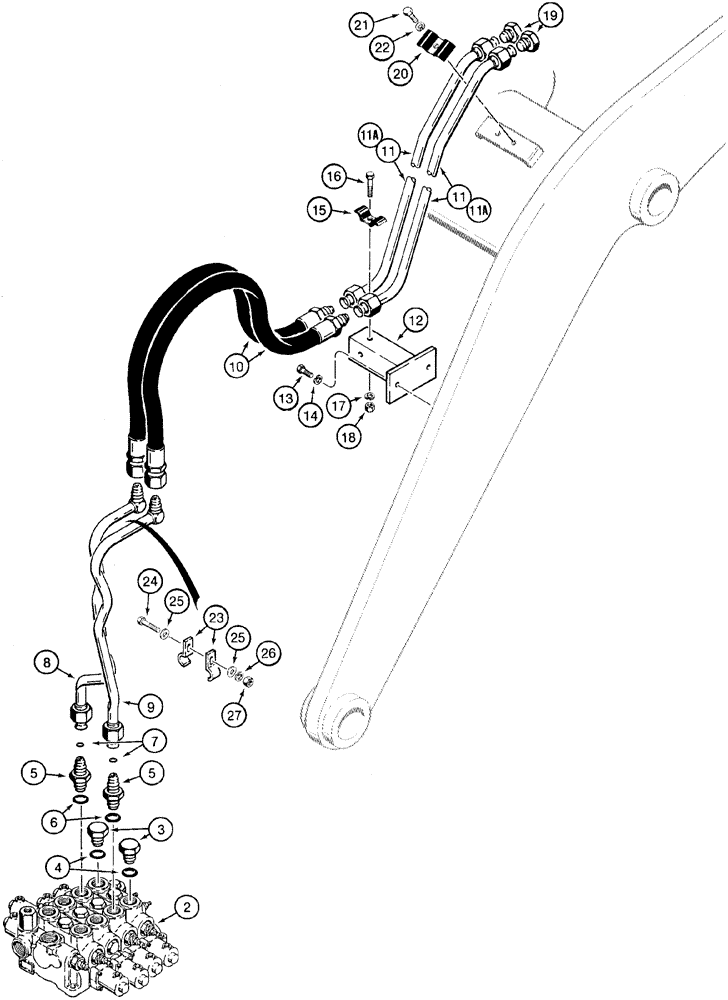

Запчасти Case 621C (08-040) - HYDRAULICS - LOADER AUX., LOADER AUX. CONTROL VALVE TO AUX. BUCKET CYL., Z-BAR & XR LOADERS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, loader, three spool, See figure 8-13, not illustrated

1шт.

2

REF

INSTRUCTION

VALVE control, loader control, four spool, North America only, See figure 8-13

1шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 4, Use to Plug Ports of Fourth Valve Section on Units with a Four Spool Valve

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

L124291

FITTING

ADAPTER, Includes: Refs. 6 and 7

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

7

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Face Seal End

1шт.

8

L126182

TUBE,25.4 mm OD

1шт.

9

L126180

TUBE,25.4 mm OD x 802, 248 mm L

1шт.

10

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

43-3/8 in, (1100 mm)

2шт.

11

L126486

PIPE,25.4 mm OD

standard loader models

2шт.

11a

127487A1

HYD TUBE

extended reach loader models

2шт.

12

L126511

SUPPORT

BRACKET

1шт.

13

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

R15257

CLAMP

1шт.

16

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

Standard loader models

1шт.

16

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

Extended reach loader models

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

218-779

PLUG,1 5/16"-12, 37 Degree

Use when auxiliary attachments are not used

2шт.

20

R15257

CLAMP

1шт.

21

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

L32065

CLAMP

2шт.

24

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

1шт.

25

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.
