Запчасти Case 621C (08-040[A]) - HYDRAULICS - LOADER CONTROL, REMOTE, HOSE GROMMET TO TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS

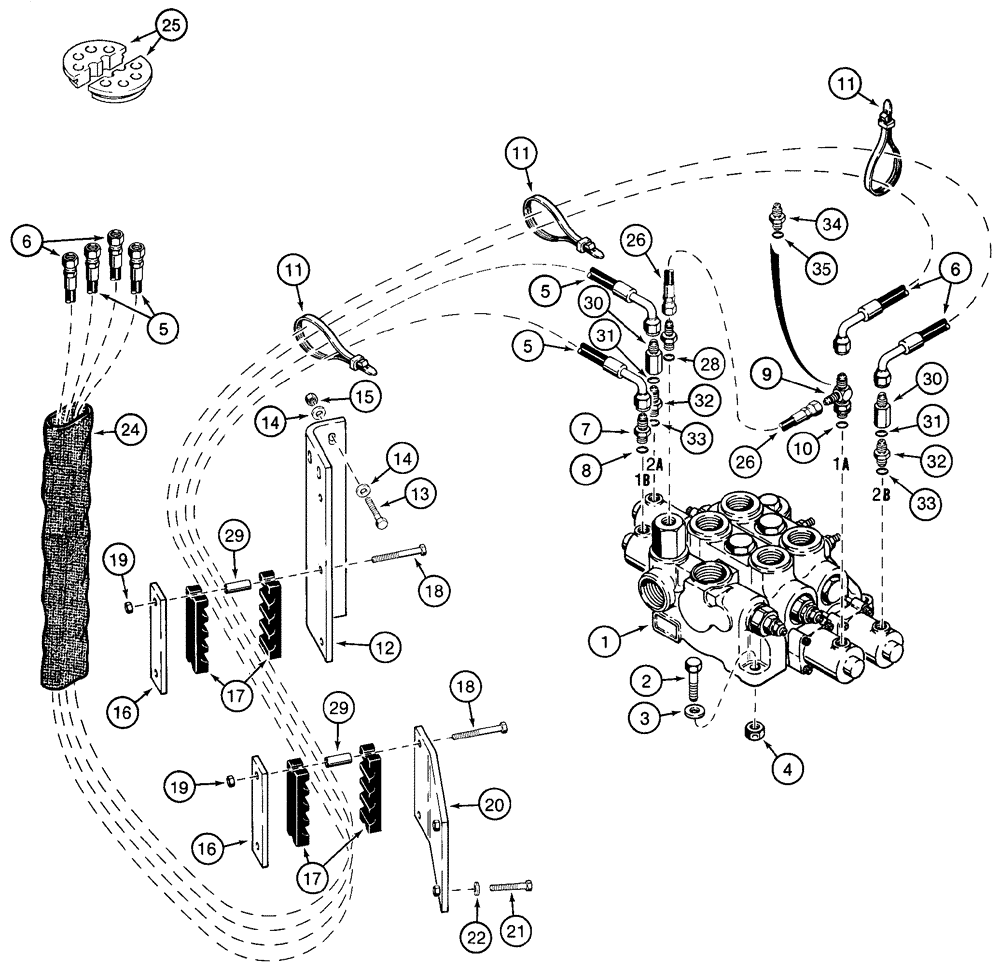

Схема запчастей Case 621C - (08-040[A]) - HYDRAULICS - LOADER CONTROL, REMOTE, HOSE GROMMET TO TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS
11
29
2
19
5
33
9
7
31
35
18
13
6
19
31
33
11
3
29
14
1
26
30
6
25
10
26
17
11
5
12
28
16
24
16
34
30
21
22
15
17
4
32
20
5
8
32
18
14

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE control, See figures 8-13, 8-17

1шт.

2

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

3

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

3шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

5

292956A1

HOSE ASSY.

105-5/8 in, (2680 mm), hose grommet to ports 1B and 2A

2шт.

6

292957A1

HOSE ASSY.

144-1/2 in, (3670 mm), hose grommet to ports 1A and 2B

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

At Port(s) 1B, Incl. Ref. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

L124527

TEE

at port(s) 1A, Includes: Ref. 10, Z-Bar or XR Loader

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

12

114654A1

BRACKET

bolts to front chassis

1шт.

13

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

6шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

16

L124270

LARGE PLATE

PLATE, LARGE

2шт.

17

L124271

FIXING BRACKET

4шт.

18

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

20

300614A1

SUPPORT

bolts to rear frame

1шт.

21

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

24

S120426

TUBE

1шт.

25

232388A1

GROMMET

hose separator

2шт.

26

L128977

TUBE ASSY.

20-7/8 in, (510 mm), inlet and outlet section to tee at port 1A, Z-Bar or XR Loader

1шт.

27

L129691

FITTING

Includes: Ref. 28, Z-Bar or XR Loader

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

L126936

SPACER

4шт.

L110143

VALVE

check, Includes: Refs. 30-33, at Port(s) 2A, 2B

2шт.

30

NSS

NOT SOLD SEPARAT

BODY

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 33

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adapter, Includes: Ref. 35, at port(s) 1A, XT Loader

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 35
