(08-038) - HYDRAULICS - LOADER CONTROL, REMOTE, SINGLE LEVER WITH TWO SPOOL VALVE, NORTH AMERICA ONLY

Запчасти Case 621C (08-038) - HYDRAULICS - LOADER CONTROL, REMOTE, SINGLE LEVER WITH TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS

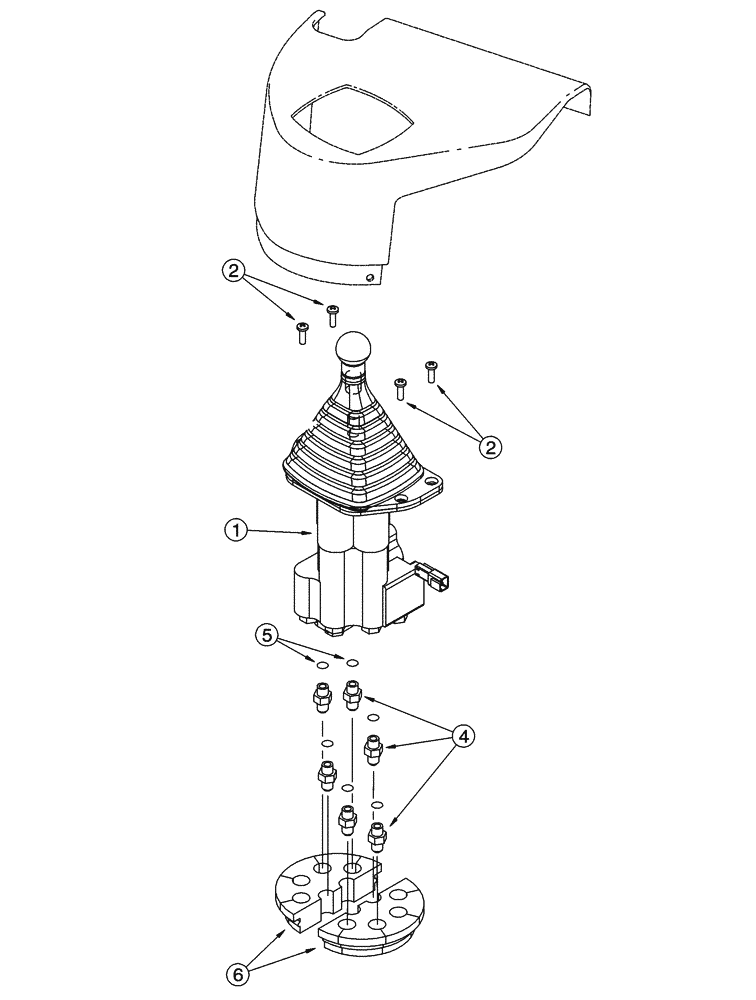

Схема запчастей Case 621C - (08-038) - HYDRAULICS - LOADER CONTROL, REMOTE, SINGLE LEVER WITH TWO SPOOL VALVE, NORTH AMERICA ONLY (08) - HYDRAULICS
4
2
5
6
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

292085A1

VALVE

control, single lever remote, See figure 8-047

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 5

6шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

232388A1

GROMMET

2шт.
