Запчасти Case 621C (08-036) - CYLINDER ASSY LOADER BUCKET (08) - HYDRAULICS

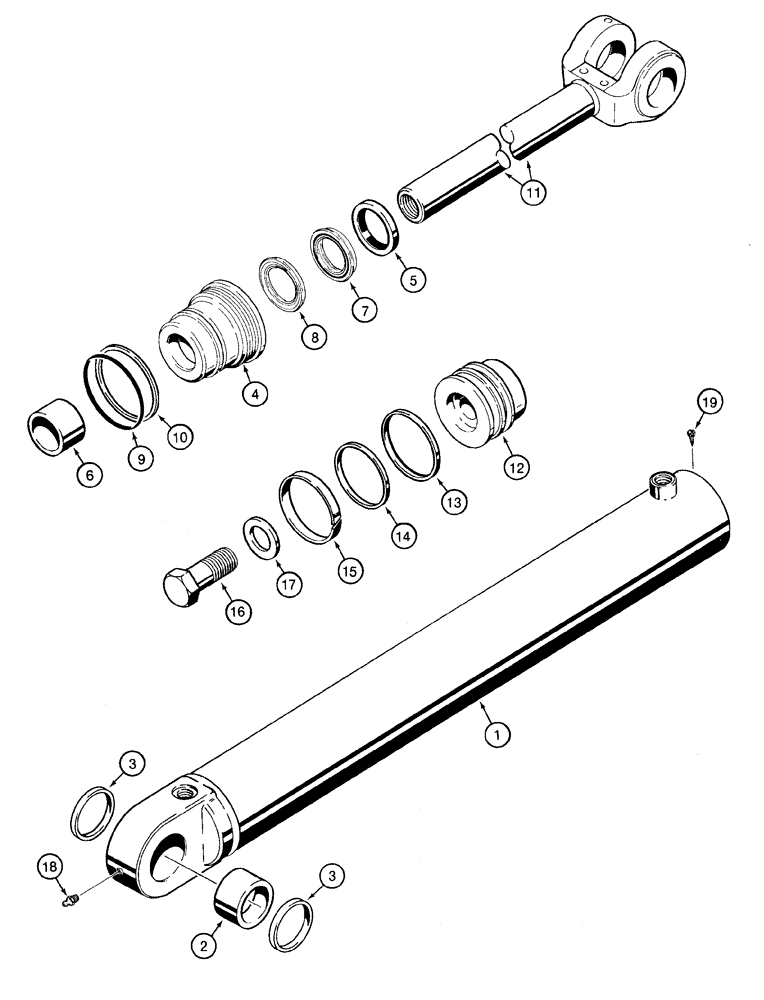

Схема запчастей Case 621C - (08-036) - CYLINDER ASSY LOADER BUCKET (08) - HYDRAULICS
8
6
2
5
1
14
7
3
13
3
11
4
9
16
18
10
15
17
19
12

Артикул

Название

Примечание

Количество

112551A1

JACK BODY

TUBE, 114 ID x 1001 mm strk, bucket, Consists of: Refs. 1-19

1шт.

1

112015A1

TUBE,114.17 mm ID, 1238.8 mm Length

TUBE, Includes: Refs. 2 and 3

1шт.

2

G100495

BUSHING,51.13mm ID x 63.63mm OD x 45.72mm L

1шт.

3

1280600C1

SEAL,50.77mm ID x 63.5mm OD x 7.92mm Thk

2шт.

NSS

NOT SOLD SEPARAT

GLAND cylinder, Includes: Refs. 4-10, order components

1шт.

4

1978121C2

GLAND

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Includes: Refs. 7 and 8, NSS, Order: P/N 1543279C1

1шт.

7

1542929C1

SEAL,2.778mm OD

ROD, NSS, Order: P/N 1543279C1 Seal Kit

1шт.

8

1542928C1

SEAL,2.275" ID

Buffer, NSS, Order: P/N 1543279C1 Kit

1шт.

9

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

10

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

1шт.

11

112019A1

PISTON ROD

57 mm Dia.

1шт.

12

1986543C1

PISTON

1шт.

13

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

1шт.

14

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING

1шт.

15

G101996

WEAR RING,4.5" OD x 0.75" Thk

1шт.

16

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

1шт.

17

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

19

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

1543279C1

SEAL KIT

Includes: Refs. 5-10, 13-15

1шт.

Выбрано товаров: 23
