Запчасти Case 621C (08-036[A]) - HYDRAULICS LOADER BUCKET, LOADER BUCKET XT LOADER (08) - HYDRAULICS

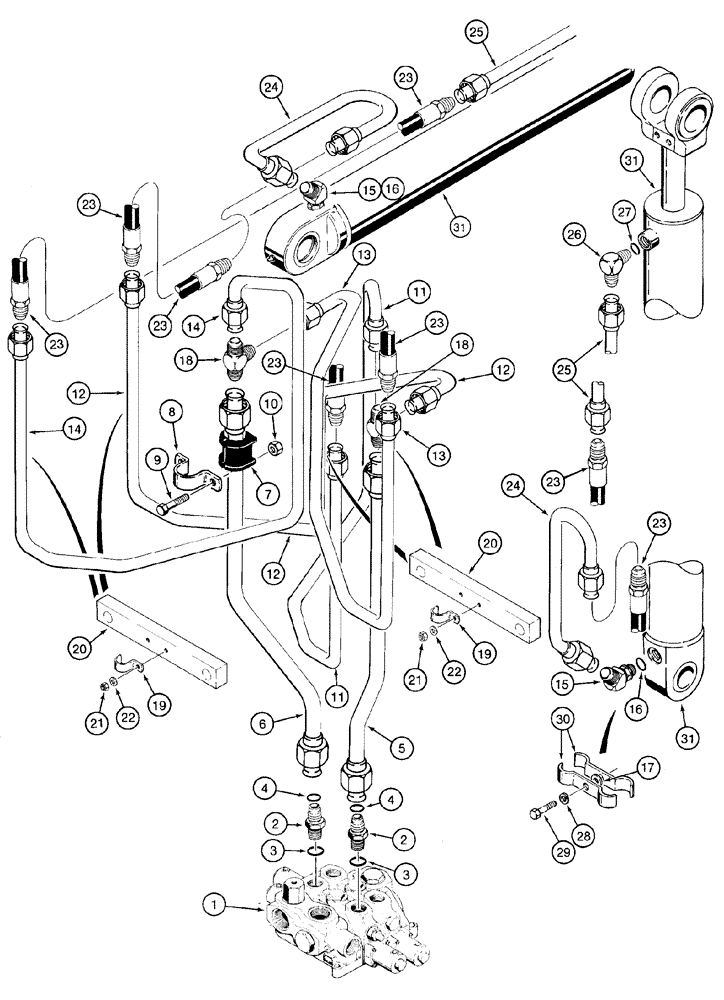

Схема запчастей Case 621C - (08-036[A]) - HYDRAULICS LOADER BUCKET, LOADER BUCKET XT LOADER (08) - HYDRAULICS
19
12
23
28
27
29
2
21
18
31
12
23
21
10
15
16
23
7
26
23
6
5
11
31
17
4
24
30
13
24
16
2
23
14
3
8
22
20
22
15
13
4
14
23
20
23
3
19
23
18
9
1
31
25
11
25
12

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE control, loader control, See figure 8-17

1шт.

2

L124290

CONNECTOR, ELEC

CONNECTOR ADAPTER, Includes: Refs. 3 and 4

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Face Seal End

1шт.

5

131096A1

TUBE,31.75 mm OD, 826, 51 mm Length

closed end

1шт.

6

131098A1

TUBE,31.75 mm OD, 826, 222 mm Length

rod end

1шт.

7

D67298

INSULATOR

2шт.

8

L124293

MOUNTING CLIP

CLAMP

2шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

10

231-1446

NUT,3/8" - 16, Gr 5

4шт.

11

136325A1

TUBE,25.4 mm OD, 537, 446 mm Length

right hand cylinder, closed end

1шт.

12

136319A1

TUBE,25.4 mm OD, 629, 534 mm Length

left hand cylinder, closed end

1шт.

13

136321A1

TUBE,25.4 mm OD, 629, 534 mm Length

right hand cylinder, rod end

1шт.

14

136323A1

TUBE,25.4 mm OD, 537, 446 mm Length

left hand cylinder, rod end

1шт.

15

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adj. or, Incl. Ref. 16

2шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

18

218-607

TEE,37º, 1 5/16"-12 x 1 5/8"-12, Run

2шт.

19

A12308

CLAMP

8шт.

20

131256A1

BAR

4шт.

21

231-1446

NUT,3/8" - 16, Gr 5

8шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

16шт.

23

131088A1

HOSE ASSY.,19.05mm ID x 1260mm L, SAE 100R12

49-5/8 in, (1260 mm)

4шт.

24

346335A1

TUBE

closed end

2шт.

25

346334A1

TUBE,25.4 mm OD, 779, 58 mm Length

rod end

2шт.

26

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 27

2шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

30

L119234

CLAMP

CLAMP

4шт.

31

112551A1

JACK BODY

CYLINDER, 114 ID x 1001 mm strk, bucket, See figure 8-131

1шт.

Выбрано товаров: 31
