Запчасти Case 621C (08-035) - CYLINDER ASSY LOADER BUCKET (08) - HYDRAULICS

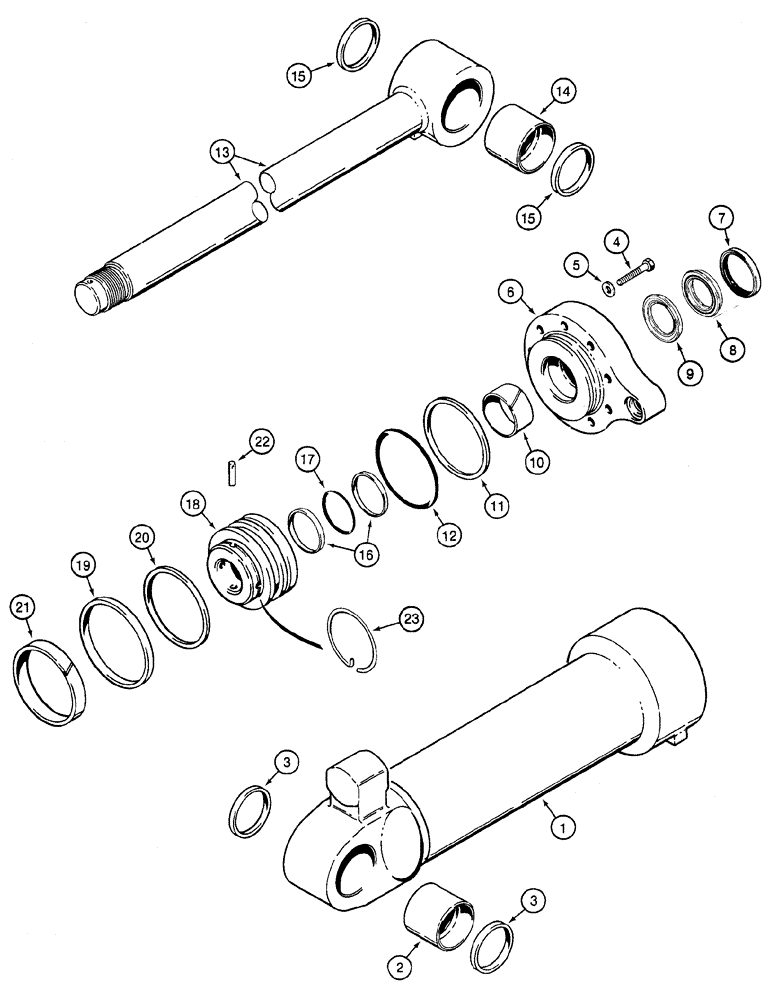

Схема запчастей Case 621C - (08-035) - CYLINDER ASSY LOADER BUCKET (08) - HYDRAULICS
3
19
8
11
15
2
4
17
6
1
14
15
15
23
7
10
20
18
3
5
12
9
22
13
21

Артикул

Название

Примечание

Количество

125872A1

CYLINDER ASSY.

152 ID x 544 mm strk, bucket, Consists of: 1-23

1шт.

1

1343593C1

TUBE

Includes: Ref. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

1шт.

3

L104363

WIPER SEAL

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

9шт.

5

G110688

WASHER

5/8

9шт.

NSS

NOT SOLD SEPARAT

GLAND cylinder, Includes: Refs. 6-12, order components

1шт.

6

1543093C1

PACKING GLAND

1шт.

7

D95148

WIPER SEAL

1шт.

1542881C1

SEAL KIT

Includes: Refs. 8 and 9, NSS, Order: P/N 1543306C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL rod, NSS, Order: P/N 1543306C1 Kit

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL buffer, NSS, Order: P/N 1543306C1Kit

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

1шт.

11

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

1шт.

12

238-5356

O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro

1шт.

13

L302890

PISTON ROD

76 mm dia., Includes Ref. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

1шт.

15

L104363

WIPER SEAL

2шт.

16

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup

2шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

18

1343554C1

JACK PISTON

1шт.

19

G110330

SEALING RING

SEALRING

1шт.

20

G110331

SEALING RING,Square, 6.86mm Thk x 132.46mm ID

SEALRING Backup

1шт.

21

G110332

WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk

1шт.

22

G106602

LOCK PIN

1шт.

23

1980352C1

RING

retaining

1шт.

1543306C1

SEAL KIT

SEAL, Includes: Refs. 7-12, 16, 17, 19-21

1шт.

Выбрано товаров: 27
