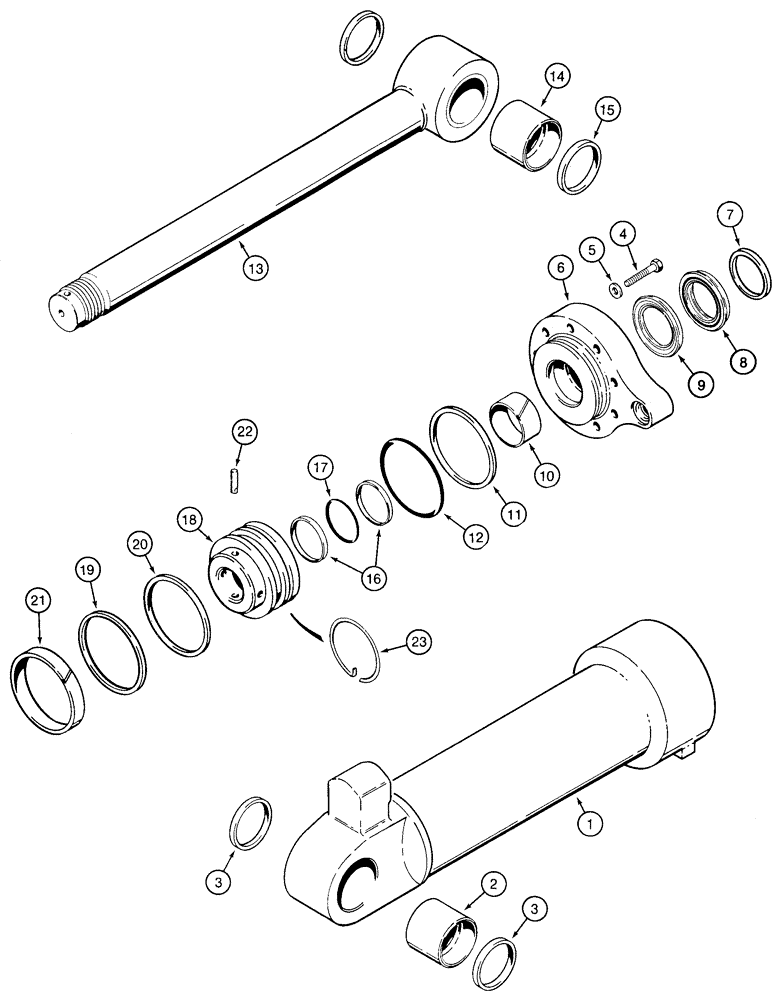

Запчасти Case 621C (08-034) - CYLINDER ASSY LOADER BUCKET (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1343552C2
CYLINDER ASSY.
152 ID x 544 mm strk, bucket, Consists of: 1-23, no longer available, Order: P/N 339921A1
1шт.
339921A1
CYLINDER ASSY.
152 ID x 544 mm strk, bucket, Consists of: 1-23, Replaces: P/N 1343552C2
1шт.
1
1343593C1
TUBE
Includes: Ref. 2, used with P/N 1343552C2
1шт.
1
348961A1
JACK BODY,799.2 mm Length
TUBE, Includes: Ref. 2, used with P/N 339921A1
1шт.
2
L127014
BUSHING,82.73mm ID x 95.38mm OD x 82mm L
1шт.
3
L104363
WIPER SEAL
2шт.
4
28-944
BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8
9шт.
5
G110688
WASHER
5/8
9шт.
NSS
NOT SOLD SEPARAT
GLAND cylinder, Includes: Refs. 6-12, order components
1шт.
6
1543093C1
PACKING GLAND
1шт.
1542881C1
SEAL KIT
Includes: 8 and 9, NSS, Order: P/N 1543306C1 Kit
1шт.
8
NSS
NOT SOLD SEPARAT
SEAL rod, NSS, Order: P/N 1543306C1 Kit
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL buffer, NSS, Order: P/N 1543306C1 Kit
1шт.
10
G102429
BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L
1шт.
11
G109034
BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk
1шт.
12
238-5356
O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro
1шт.
13
1343555C1
PISTON ROD
76 mm Dia., Includes: 14, used with P/N 1343552C2
1шт.
13
348966A1
PISTON ROD
76 mm Dia., Includes: 14, used with P/N 339921A1
1шт.
14
L127014
BUSHING,82.73mm ID x 95.38mm OD x 82mm L
1шт.
15
L104363
WIPER SEAL
2шт.
16
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
2шт.
18
1343554C1
JACK PISTON
no longer used, Order: P/N 377646A1
1шт.
18
377646A1
JACK PISTON
Replaces: P/N 1343554C1
1шт.
19
G110330
SEALING RING
SEALRING
1шт.
20
G110331
SEALING RING,Square, 6.86mm Thk x 132.46mm ID
SEALRING Backup
1шт.
21
G110332
WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk
SEAL
1шт.
22
G106602
LOCK PIN
1шт.
23
1980352C1
RING
retaining
1шт.
1543306C1
SEAL KIT
SEAL, Includes: Refs. 7-12, 16, 17, 19-21
1шт.
Выбрано товаров: 31
